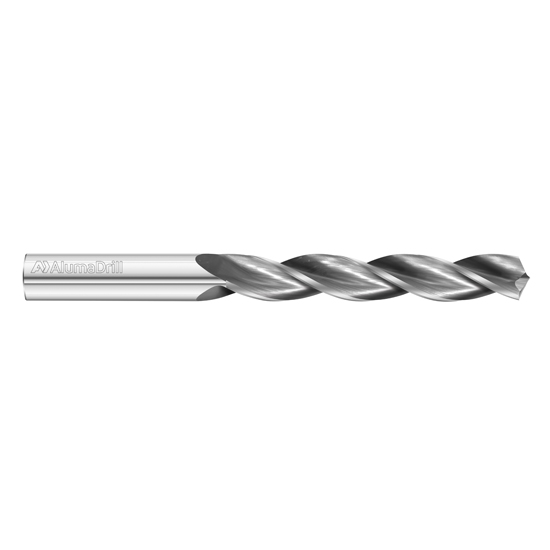

Fullerton Tool 15609 | Letter I Solid Carbide Uncoated Jobbers Length Drill

$57.72 $56.57
(You save $1.15)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Drill Bit Size (Decimal Inch):
0.2720"
Drill Bit Size (mm):
6.91mm
Drill Bit Size (Letter):
I
Drill Point Angle:
130 Degree
Material:
Solid Carbide
Finish/Coating:
Uncoated
Flute Type:
Parabolic
Cutting Direction:
Right Hand
Shank Type:
Straight
Through Coolant:
Non Through Coolant
Ships:
From Partner Facility
interval quantity:
1
SKU:
10001536
UPC:
Weight:
0.08 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Fullerton Tool 15609 | Letter I Solid Carbide Uncoated Jobbers Length Drill

Related Products

Features

  • The 1565 AlumaDrill is a 3-flute, high performance drill designed for high-speed drilling in titanium, graphite, brass & copper, high si aluminum, low si aluminum, composites, plastics, and wood
  • It features enhanced chip evacuation in high speed drilling applications and its unique radial grinds allow self-centering and increases aggressiveness in softer materials
  • The 1565 AlumaDrill is stocked uncoated

Product Specifications
Cutting Diameter (Decimal Inch) 0.2720"
Cutting Diameter (mm) 6.91mm
Diameter (Letter) I
Cutting Flute Length (Decimal Inch) 2.1250"
Cutting Flute Length (mm) 53.98mm
Cutting Flute Length (Inch) 2-1/8"
Shank Diameter (Decimal Inch) 0.2720"
Shank Diameter (mm) 6.91mm
Overall Length (Decimal Inch) 3.5000"
Overall Length (mm) 88.90mm
Overall Length (Inch) 3-1/2"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 3
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Hi-Performance
End Type Character Designation HP
Point Include Angle 130
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator 7xD
