Features

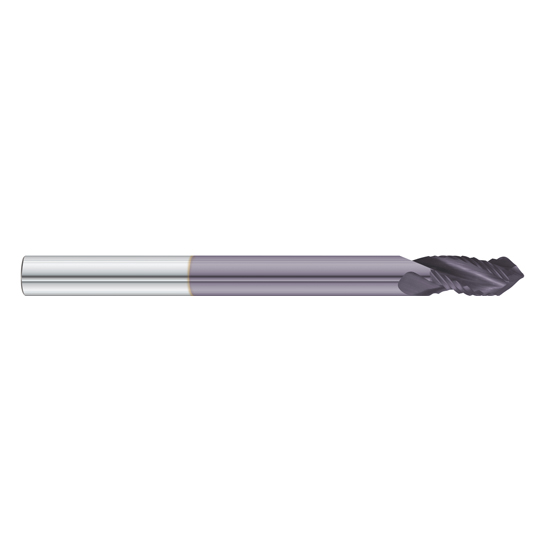

- The 1566 Poly Drill is a high performance drill with 3-flutes designed for burr-free drilling of graphite, composites, and plastics
- It produces clean, burr-free holes without breakout, eliminating the need for sanding or deburring
- Its 3-flute design allows for ultimate material removal rates and burr teeth provide a clean shearing of fibers
- The 1566 Poly Drill is stocked with TiAlN coating
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.3937" |
| Cutting Diameter (mm) | 10.00mm |
| Cutting Flute Length (Decimal Inch) | 1.4961" |
| Cutting Flute Length (mm) | 38.00mm |
| Shank Diameter (Decimal Inch) | 0.3937" |
| Shank Diameter (mm) | 10.00mm |
| Overall Length (Decimal Inch) | 5.1181" |
| Overall Length (mm) | 130.00mm |
| Coating/Finish | TIALN |
| Metric/Inch | Metric |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 30 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Notched |
| End Type Character Designation | N |
| Point Include Angle | 90 |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Standard |
| Length Designator | 3xD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Drill Bit Size (Decimal Inch):
0.3937"
Drill Bit Size (mm):
10mm
Drill Point Angle:
90°
Material:
Solid Carbide
Finish/Coating:
TiAlN
Flute Type:
Parabolic
Cutting Direction:
Right Hand
Shank Type:
Straight
Through Coolant:
Non Through Coolant
