Features

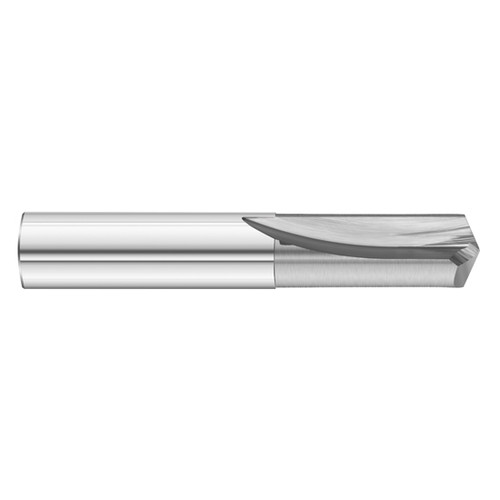

- The 1570 Die Drill is a 2-flute, general purpose drill designed for use in hardened steels, steels, cast iron, graphite, high si aluminum, low si aluminum, composites, and wood
- The 1570 Die Drill is stocked uncoated
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.1562" |
| Cutting Diameter (mm) | 3.97mm |
| Cutting Diameter (Inch) | 5/32" |
| Cutting Flute Length (Decimal Inch) | 0.7500" |
| Cutting Flute Length (mm) | 19.05mm |
| Cutting Flute Length (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.1562" |
| Shank Diameter (mm) | 3.97mm |
| Shank Diameter (Inch) | 5/32" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Overall Length (Inch) | 2-1/2" |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Number of Flutes | 2 |
| Flute Spiral Direction | Straight |
| Direction of Cut | Right Hand |
| Point End Type | Notched |
| End Type Character Designation | N |
| Point Include Angle | 135 |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Standard |
| Length Designator | 5xD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Drill Bit Size (Inch):
5/32"
Drill Bit Size (Decimal Inch):
0.1562"
Drill Bit Size (mm):
3.97mm
Drill Point Angle:
135°
Material:
Solid Carbide
Finish/Coating:
Uncoated
Flute Type:
Spiral
Cutting Direction:
Right Hand
Shank Type:
Straight
Through Coolant:
Non Through Coolant
Ships:
From Partner Facility
