Features

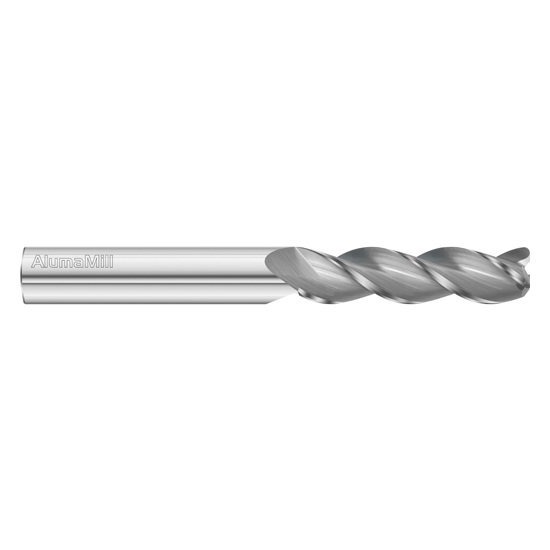

- The 3833 AlumaMill G3 is a 3-flute, high performance end mill designed for roughing and finishing aluminum and non-ferrous materials
- It excels in aggressive plunging and ramping speed environments and was designed for fast material removal and multi-purpose machining
- Its flute shape and relief form generates superior wall finishes, while its unique wiper geometry produces excellent floor finishes
- The 3833 AlumMill G3 is stocked uncoated and with FC-5 coating
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.3750" |
| Cutting Diameter (mm) | 9.53mm |
| Cutting Diameter (Inch) | 3/8" |
| Cutting Flute Length (Decimal Inch) | 2.0000" |
| Cutting Flute Length (mm) | 50.80mm |
| Cutting Flute Length (Inch) | 2" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Shank Diameter (Inch) | 3/8" |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (mm) | 101.60mm |
| Overall Length (Inch) | 4" |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 37.5 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Corner Radius |
| End Type Character Designation | R |
| Radius (Decimal Inch) | 0.0300" |
| Radius (mm) | 0.76mm |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Extra Long |
| Length Designator | XL |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/8"
Number of Flutes:
3
Length of Cut (Inch):
2"
Length of Cut (Decimal Inch):
2"
Length of Cut (mm):
50.80mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4"
Overall Length (mm):
101.60mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Series:
3833 AlumaMill G3
Ships:
From Partner Facility
