Features

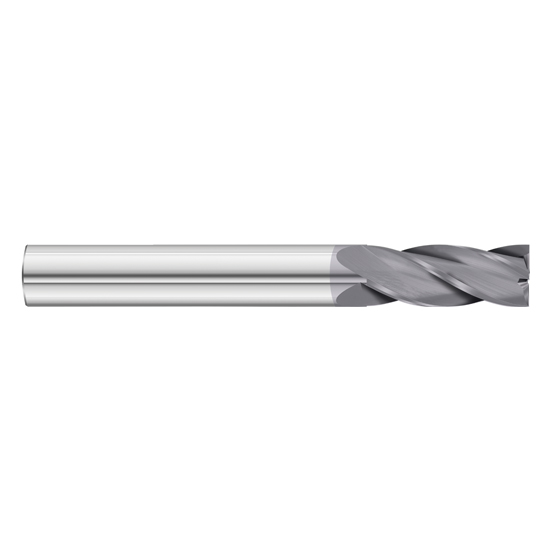

- The 3200 General Purpose end mill has 4-flutes and was designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, and low si aluminum
- It is offered in a variety of configurations and is available with single-end and double-end designs
- The 3200 General Purpose end mill is stocked uncoated and with FC-20, TiAlN, TiCN, and TiN coatings
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.7500" |
| Cutting Diameter (mm) | 19.05mm |
| Cutting Diameter (Inch) | 3/4" |
| Cutting Flute Length (Decimal Inch) | 3.0000" |
| Cutting Flute Length (mm) | 76.20mm |
| Cutting Flute Length (Inch) | 3" |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (mm) | 19.05mm |
| Shank Diameter (Inch) | 3/4" |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (mm) | 152.40mm |
| Overall Length (Inch) | 6" |
| Coating/Finish | TIALN |
| Metric/Inch | Inch |
| Number of Flutes | 4 |
| Helix Angle (Degrees) | 30 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Square |
| End Type Character Designation | S |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Extra Long |
| Length Designator | XL |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/4"
Number of Flutes:
4
Length of Cut (Inch):
3"
Length of Cut (Decimal Inch):
3"
Length of Cut (mm):
76.20mm
Shank Diameter (inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Material:
Solid Carbide
Finish/Coating:
TiAlN
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Ships:
From Partner Facility
