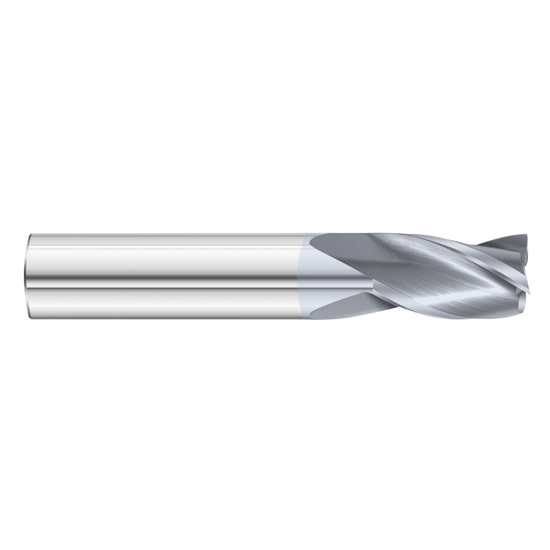

Fullerton Tool 30317 | 9/32" Diameter x 5/16" Shank x 7/8" LOC x 2-1/2" OAL 3 Flute TiCN Solid Carbide Square End Mill

$48.92 $30.82
(You save $18.10)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
9/32"
Number of Flutes:
3
Length of Cut (Inch):
7/8"
Length of Cut (Decimal Inch):
0.8750"
Length of Cut (mm):
22.23mm
Shank Diameter (inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Material:
Solid Carbide
Finish/Coating:
TiCN
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Ships:
From Partner Facility
SKU:
25003697
UPC:
Weight:
0.23 LBS
Shipping:
Calculated at Checkout

Features

  • The 3300 General Purpose end mill has 3-flutes and was designed for use in titanium, super alloys, stainless steels, steels, cast iron, brass & copper, high si aluminum, and low si aluminum
  • It is offered in a variety of configurations
  • The 3300 General Purpose end mill is stocked uncoated and with TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.2812"
Cutting Diameter (mm) 7.14mm
Cutting Diameter (Inch) 9/32"
Cutting Flute Length (Decimal Inch) 0.8750"
Cutting Flute Length (mm) 22.23mm
Cutting Flute Length (Inch) 7/8"
Shank Diameter (Decimal Inch) 0.3125"
Shank Diameter (mm) 7.94mm
Shank Diameter (Inch) 5/16"
Overall Length (Decimal Inch) 2.5000"
Overall Length (mm) 63.50mm
Overall Length (Inch) 2-1/2"
Coating/Finish TICN
Metric/Inch Inch
Number of Flutes 3
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
