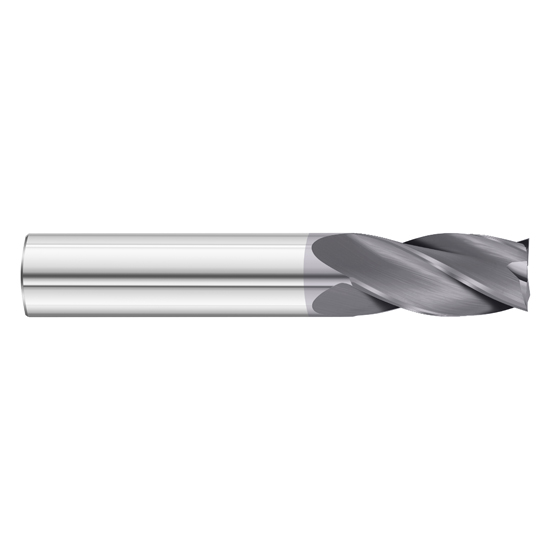

Fullerton Tool 30623 | 5/16" Diameter x 5/16" Shank x 7/8" LOC x 2-1/2" OAL 4 Flute TiAlN Solid Carbide Square End Mill

$45.02 $23.18
(You save $21.84)
Ships:
Same Business Day if Ordered by 12:30PM PT
Brand:
Fullerton Tool
Mill Diameter (Inch):
5/16"
Number of Flutes:
4
Length of Cut (Inch):
7/8"
Length of Cut (Decimal Inch):
0.8750"
Length of Cut (mm):
22.23mm
Shank Diameter (inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Material:
Solid Carbide
Finish/Coating:
TiAlN
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Ships:
Same Business Day if Ordered by 12:30PM PT
SKU:
25003253
UPC:
Weight:
0.23 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 30623 | 5/16" Diameter x 5/16" Shank x 7/8" LOC x 2-1/2" OAL 4 Flute TiAlN Solid Carbide Square End Mill

Features

  • The 3200 General Purpose end mill has 4-flutes and was designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It is offered in a variety of configurations and is available with single-end and double-end designs
  • The 3200 General Purpose end mill is stocked uncoated and with FC-20, TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.3125"
Cutting Diameter (mm) 7.94mm
Cutting Diameter (Inch) 5/16"
Cutting Flute Length (Decimal Inch) 0.8750"
Cutting Flute Length (mm) 22.23mm
Cutting Flute Length (Inch) 7/8"
Shank Diameter (Decimal Inch) 0.3125"
Shank Diameter (mm) 7.94mm
Shank Diameter (Inch) 5/16"
Overall Length (Decimal Inch) 2.5000"
Overall Length (mm) 63.50mm
Overall Length (Inch) 2-1/2"
Coating/Finish TIALN
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
