Fullerton Tool 32195 | 3/16" Diameter x 3/16" Shank x 3/8" LOC x 2" OAL 2 Flute Uncoated Solid Carbide Ball End Mill

$21.27 $13.40
(You save $7.87)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/16"
Number of Flutes:
2
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Length of Cut (mm):
9.53mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2"
Overall Length (mm):
50.80mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Ships:
From Partner Facility
SKU:
25001310
UPC:
Weight:
0.03 LBS
Shipping:
Calculated at Checkout

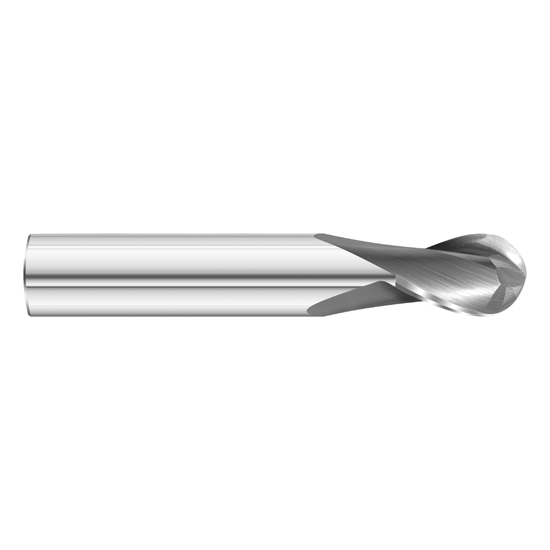

Fullerton Tool 32195 | 3/16" Diameter x 3/16" Shank x 3/8" LOC x 2" OAL 2 Flute Uncoated Solid Carbide Ball End Mill

Features

  • The 3215 General Purpose end mill has 2-flutes and was designed for use in titanium, super alloys, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It is offered in a variety of configurations and is available with single-end and double-end designs
  • The 3215 General Purpose end mill is stocked uncoated and with TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.1875"
Cutting Diameter (mm) 4.76mm
Cutting Diameter (Inch) 3/16"
Cutting Flute Length (Decimal Inch) 0.3750"
Cutting Flute Length (mm) 9.53mm
Cutting Flute Length (Inch) 3/8"
Shank Diameter (Decimal Inch) 0.1875"
Shank Diameter (mm) 4.76mm
Shank Diameter (Inch) 3/16"
Overall Length (Decimal Inch) 2.0000"
Overall Length (mm) 50.80mm
Overall Length (Inch) 2"
Coating/Finish Uncoated
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Ball
End Type Character Designation B
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Stub
Length Designator STB
