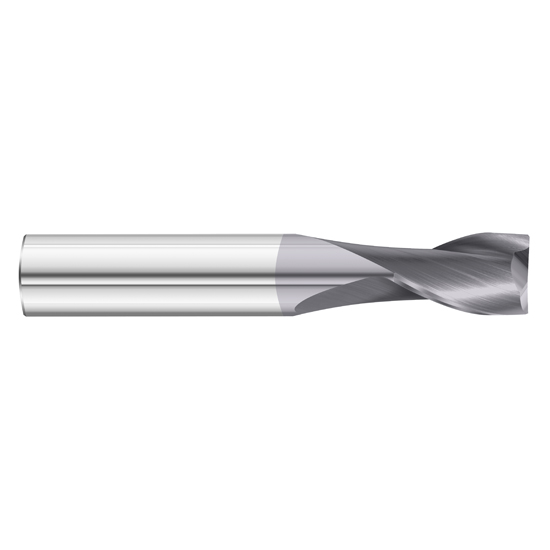

Fullerton Tool 32840 | 3/64" Diameter x 1/8" Shank x 1/8" LOC x 1-1/2" OAL 2 Flute TiAlN Solid Carbide Square End Mill

$17.60 $11.09
(You save $6.51)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/64"
Number of Flutes:
2
Length of Cut (Inch):
1/8"
Length of Cut (Decimal Inch):
0.1250"
Length of Cut (mm):
3.18mm
Shank Diameter (inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Material:
Solid Carbide
Finish/Coating:
TiAlN
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Ships:
From Partner Facility
SKU:
25003442
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 32840 | 3/64" Diameter x 1/8" Shank x 1/8" LOC x 1-1/2" OAL 2 Flute TiAlN Solid Carbide Square End Mill

Features

  • The 3215 General Purpose end mill has 2-flutes and was designed for use in titanium, super alloys, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It is offered in a variety of configurations and is available with single-end and double-end designs
  • The 3215 General Purpose end mill is stocked uncoated and with TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.0469"
Cutting Diameter (mm) 1.19mm
Cutting Diameter (Inch) 3/64"
Cutting Flute Length (Decimal Inch) 0.1250"
Cutting Flute Length (mm) 3.18mm
Cutting Flute Length (Inch) 1/8"
Shank Diameter (Decimal Inch) 0.1250"
Shank Diameter (mm) 3.18mm
Shank Diameter (Inch) 1/8"
Overall Length (Decimal Inch) 1.5000"
Overall Length (mm) 38.10mm
Overall Length (Inch) 1-1/2"
Coating/Finish TIALN
Metric/Inch Inch
Number of Flutes 2
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Stub
Length Designator STB
