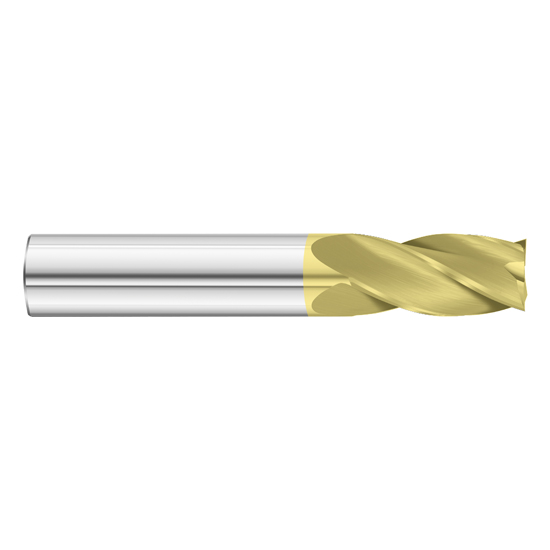

Fullerton Tool 33105 | 5/32" Diameter x 3/16" Shank x 9/16" LOC x 2" OAL 4 Flute TiN Solid Carbide Square End Mill

$25.78 $16.24
(You save $9.54)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
5/32"
Number of Flutes:
4
Length of Cut (Inch):
9/16"
Length of Cut (Decimal Inch):
0.5625"
Length of Cut (mm):
14.29mm
Shank Diameter (inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Material:
Solid Carbide
Finish/Coating:
TiN
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Ships:
From Partner Facility
SKU:
25003133
UPC:
Weight:
0.03 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 33105 | 5/32" Diameter x 3/16" Shank x 9/16" LOC x 2" OAL 4 Flute TiN Solid Carbide Square End Mill

Features

  • The 3200 General Purpose end mill has 4-flutes and was designed for use in titanium, super alloys, hardened steels, stainless steels, steels, cast iron, brass & copper, and low si aluminum
  • It is offered in a variety of configurations and is available with single-end and double-end designs
  • The 3200 General Purpose end mill is stocked uncoated and with FC-20, TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.1562"
Cutting Diameter (mm) 3.97mm
Cutting Diameter (Inch) 5/32"
Cutting Flute Length (Decimal Inch) 0.5625"
Cutting Flute Length (mm) 14.29mm
Cutting Flute Length (Inch) 9/16"
Shank Diameter (Decimal Inch) 0.1875"
Shank Diameter (mm) 4.76mm
Shank Diameter (Inch) 3/16"
Overall Length (Decimal Inch) 2.0000"
Overall Length (mm) 50.80mm
Overall Length (Inch) 2"
Coating/Finish TIN
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD



Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Fullerton Tool
Mill Diameter (Inch):
5/32"
Number of Flutes:
4
Length of Cut (Inch):
9/16"
Length of Cut (Decimal Inch):
0.5625"
Length of Cut (mm):
14.29mm
Shank Diameter (inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Material:
Solid Carbide
Finish/Coating:
TiN
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Ships:
From Partner Facility
