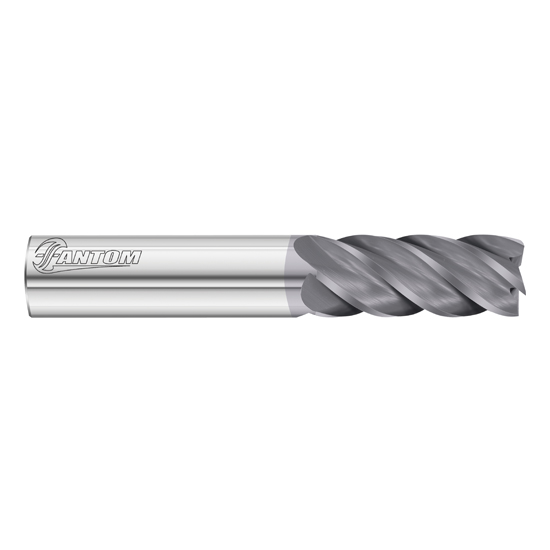

Fullerton Tool 34129 | 3/8" Diameter x 3/8" Shank x 1" LOC x 2-1/2" OAL 5 Flute FC18 Solid Carbide Square End Mill

$67.98 $42.83
(You save $25.15)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/8"
Number of Flutes:
5
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1"
Length of Cut (mm):
25.40mm
Shank Diameter (inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Material:
Solid Carbide
Finish/Coating:
FC18
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Series:
3410 Fantom
Ships:
From Partner Facility
SKU:
25004040
UPC:
Weight:
0.20 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 34129 | 3/8" Diameter x 3/8" Shank x 1" LOC x 2-1/2" OAL 5 Flute FC18 Solid Carbide Square End Mill

Features

  • The 3410 Fantom is a 5-flute, high performance end mill designed to excel in difficult to machine materials like steels, stainless steels, super alloys, and titanium
  • Its variable index and eccentric relief provide a stable, robust cutter that allows heavier chip loads and produces superior part finishes
  • The 3410 Fantom is stocked with FC-18 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.3750"
Cutting Diameter (mm) 9.53mm
Cutting Diameter (Inch) 3/8"
Cutting Flute Length (Decimal Inch) 1"
Cutting Flute Length (mm) 25.40mm
Cutting Flute Length (Inch) 1"
Shank Diameter (Decimal Inch) 0.3750"
Shank Diameter (mm) 9.53mm
Shank Diameter (Inch) 3/8"
Overall Length (Decimal Inch) 2.5000"
Overall Length (mm) 63.50mm
Overall Length (Inch) 2-1/2"
Coating/Finish FC18
Metric/Inch Inch
Number of Flutes 5
Helix Angle (Degrees) 40
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
