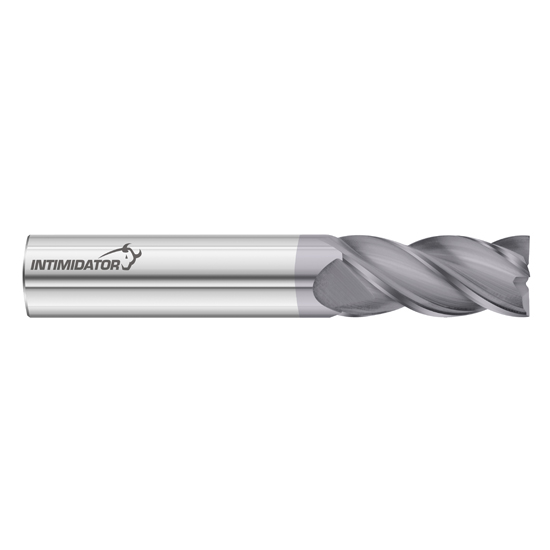

Fullerton Tool 34288 | 5/8" Diameter x 5/8" Shank x 1-5/8" LOC x 4" OAL 4 Flute FC18 Solid Carbide Square End Mill

$215.23 $135.59
(You save $79.64)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
5/8"
Number of Flutes:
4
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Shank Diameter (inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Material:
Solid Carbide
Finish/Coating:
FC18
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Series:
3000 Intimidator
Ships:
From Partner Facility
SKU:
25004219
UPC:
Weight:
0.31 LBS
Shipping:
Free Shipping
Fullerton Tool 34288 | 5/8" Diameter x 5/8" Shank x 1-5/8" LOC x 4" OAL 4 Flute FC18 Solid Carbide Square End Mill

Features

  • The 3000 Intimidator is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
  • The 3000 Intimidator can be used in full slotting, roughing, and finishing applications and its specially designed flute relief and unequally spaced index provides chatter-free machining
  • The 3000 Intimidator is stocked with FC-18 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.6250"
Cutting Diameter (mm) 15.88mm
Cutting Diameter (Inch) 5/8"
Cutting Flute Length (Decimal Inch) 1.6250"
Cutting Flute Length (mm) 41.28mm
Cutting Flute Length (Inch) 1-5/8"
Shank Diameter (Decimal Inch) 0.6250"
Shank Diameter (mm) 15.88mm
Shank Diameter (Inch) 5/8"
Overall Length (Decimal Inch) 4.0000"
Overall Length (mm) 101.60mm
Overall Length (Inch) 4"
Coating/Finish FC18
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) 38
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat Yes
Length Standard
Length Designator SD
