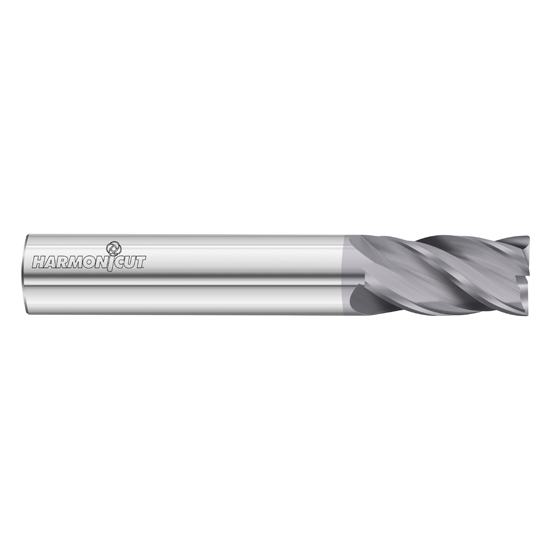

Fullerton Tool 34765 | 5/16" Diameter x 5/16" Shank x 1/2" LOC x 2" OAL 4 Flute FC18 Solid Carbide Radius End Mill

$58.31 $36.74
(You save $21.57)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
5/16"
Number of Flutes:
4
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.70mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2"
Overall Length (mm):
50.80mm
Material:
Solid Carbide
Finish/Coating:
FC18
Single or Double End:
Single
Series:
3400 Harmon-i-Cut
Ships:
From Partner Facility
SKU:
25002765
UPC:
Weight:
0.23 LBS
Shipping:
Calculated at Checkout
Fullerton Tool 34765 | 5/16" Diameter x 5/16" Shank x 1/2" LOC x 2" OAL 4 Flute FC18 Solid Carbide Radius End Mill

Features

  • The 3400 Harmon-i-Cut is a 4-flute, high performance end mill designed for difficult to machine ferrous materials
  • It features a variable helix, variable index, and variable rake which maximizes tool life and removal rates by minimizing the effects of harmonics
  • The 3400 Harmon-i-Cut allows the capability to rough and finish with one tool and is stocked with FC-18 coating

Product Specifications
Cutting Diameter (Decimal Inch) 0.3125"
Cutting Diameter (mm) 7.94mm
Cutting Diameter (Inch) 5/16"
Cutting Flute Length (Decimal Inch) 0.5000"
Cutting Flute Length (mm) 12.70mm
Cutting Flute Length (Inch) 1/2"
Shank Diameter (Decimal Inch) 0.3125"
Shank Diameter (mm) 7.94mm
Shank Diameter (Inch) 5/16"
Overall Length (Decimal Inch) 2.0000"
Overall Length (mm) 50.80mm
Overall Length (Inch) 2"
Coating/Finish FC18
Metric/Inch Inch
Number of Flutes 4
Helix Angle (Degrees) Variable
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Corner Radius
End Type Character Designation R
Radius (Decimal Inch) 0.0900"
Radius (mm) 2.29mm
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
