Features

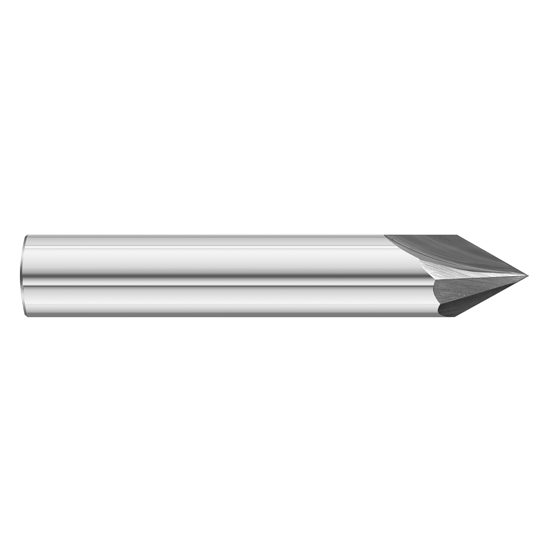

- The 3730 Chamfer Mill is a general performance end mill available with 2 or 4-flutes
- It was designed for deburring and chamfering in small grooves and holes
- It improves tool life and finish for profiling and chamfering of large features
- The 3730 Chamfer Mill is stocked uncoated and with TiAlN coating
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.3750" |
| Cutting Diameter (mm) | 9.53mm |
| Cutting Diameter (Inch) | 3/8" |
| Cutting Flute Length (Decimal Inch) | 0.3240" |
| Cutting Flute Length (mm) | 8.23mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Shank Diameter (Inch) | 3/8" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Overall Length (Inch) | 2-1/2" |
| Non Cutting Tip (Decimal Inch) | 0.0300" |
| Non Cutting Tip (mm) | 0.76mm |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Number of Flutes | 2 |
| Flute Spiral Direction | Straight |
| Direction of Cut | Right Hand |
| Point End Type | Chamfer |
| End Type Character Designation | C |
| Chamfer Angle (Degrees) | 60 |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Standard |
| Length Designator | SD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Cutter Head Diameter (Inch):
3/8"
Cutter Head Diameter (Decimal Inch):
0.3750"
Cutter Head Diameter (mm):
9.53mm
Included Angle:
60 Degree
Material:
Solid Carbide
Finish/Coating:
Uncoated
Overall Length (Inch):
2-1/2"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Number of Flutes:
2
End Type:
Single End
