Features

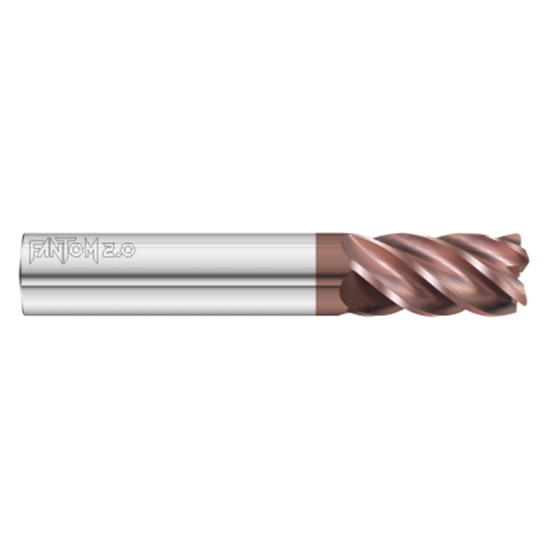

- The 3412 Fantom 2.0 is a 5-flute, high performance end mill designed to excel in difficult to machine materials like steels, stainless steels, super alloys, and titanium
- Its variable index and eccentric relief provide a stable, robust cutter that allows heavier chip loads and its enhanced edge strength increases productivity and lowers costs per part
- The 3412 Fantom 2.0 is stocked with FC-20 coating
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.1575" |
| Cutting Diameter (mm) | 4.00mm |
| Cutting Flute Length (Decimal Inch) | 0.5512" |
| Cutting Flute Length (mm) | 14.00mm |
| Shank Diameter (Decimal Inch) | 0.1575" |
| Shank Diameter (mm) | 4.00mm |
| Overall Length (Decimal Inch) | 1.9685" |
| Overall Length (mm) | 50.00mm |
| Coating/Finish | FC20 |
| Metric/Inch | Metric |
| Number of Flutes | 5 |
| Helix Angle (Degrees) | 40 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Corner Radius |
| End Type Character Designation | R |
| Radius (Decimal Inch) | 0.0079" |
| Radius (mm) | 0.20mm |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Standard |
| Length Designator | SD |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (mm):
4mm
Number of Flutes:
5
Length of Cut (Decimal Inch):
0.5512"
Length of Cut (mm):
14mm
Shank Diameter (Decimal Inch):
0.1575"
Shank Diameter (mm):
4mm
Overall Length (Decimal Inch):
1.9685"
Overall Length (mm):
50mm
Material:
Solid Carbide
Finish/Coating:
FC20
Single or Double End:
Single
Series:
3412 Fantom 2.0
Ships:
From Partner Facility
