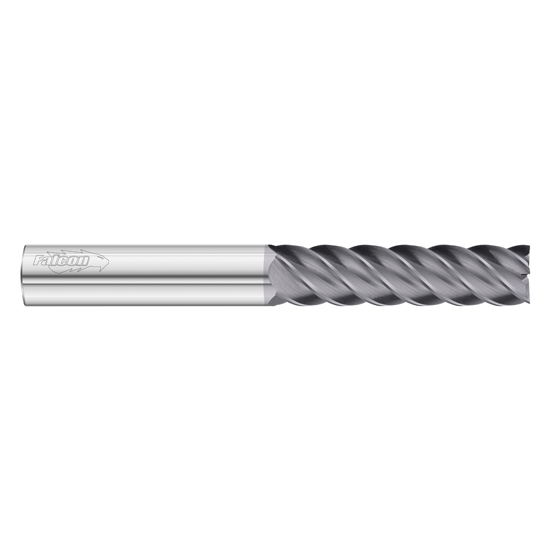

Fullerton Tool 38194 | 1" Diameter x 1" Shank x 3" LOC x 6" OAL 5 Flute TiAlN Solid Carbide Square End Mill

$543.64 $342.49
(You save $201.15)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (Inch):
1"
Number of Flutes:
5
Length of Cut (Inch):
3"
Length of Cut (Decimal Inch):
3"
Length of Cut (mm):
76.20mm
Shank Diameter (inch):
1"
Shank Diameter (Decimal Inch):
1"
Shank Diameter (mm):
25.40mm
Material:
Solid Carbide
Finish/Coating:
TiAlN
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Series:
3845 Falcon Finisher
Ships:
From Partner Facility
SKU:
25003957
UPC:
Weight:
1.34 LBS
Shipping:
Free Shipping

Features

  • The 3845 Falcon Finisher is a 5-flute, high performance end mill with eccentric relief which produces superior part finishes at extraordinary feed rates
  • The 3845 Falcon Finisher is stocked uncoated and with TiAlN coating

Product Specifications
Cutting Diameter (Decimal Inch) 1"
Cutting Diameter (mm) 25.40mm
Cutting Diameter (Inch) 1"
Cutting Flute Length (Decimal Inch) 3.0000"
Cutting Flute Length (mm) 76.20mm
Cutting Flute Length (Inch) 3"
Shank Diameter (Decimal Inch) 1"
Shank Diameter (mm) 25.40mm
Shank Diameter (Inch) 1"
Overall Length (Decimal Inch) 6.0000"
Overall Length (mm) 152.40mm
Overall Length (Inch) 6"
Coating/Finish TIALN
Metric/Inch Inch
Number of Flutes 5
Helix Angle (Degrees) 45
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Extra Long
Length Designator XL
