Features

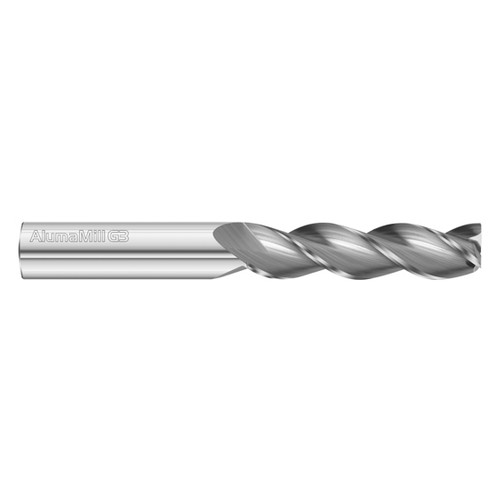

- The 3835 AlumaMill is a 3-flute, high performance end mill designed for aggressive material removal rates in aluminum and non-ferrous materials
- Its high polish and unique cylindrical margin design produces superior wall finishes
- The 3835 AlumaMill is stocked uncoated and with FC-19 coating
Product Specifications
| Cutting Diameter (Decimal Inch) | 1" |
| Cutting Diameter (mm) | 25.40mm |
| Cutting Diameter (Inch) | 1" |
| Cutting Flute Length (Decimal Inch) | 3.2500" |
| Cutting Flute Length (mm) | 82.55mm |
| Cutting Flute Length (Inch) | 3-1/4" |
| Shank Diameter (Decimal Inch) | 1" |
| Shank Diameter (mm) | 25.40mm |
| Shank Diameter (Inch) | 1" |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (mm) | 152.40mm |
| Overall Length (Inch) | 6" |
| Coating/Finish | Uncoated |
| Metric/Inch | Inch |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 36 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Square |
| End Type Character Designation | S |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Extra Long |
| Length Designator | XL |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (Inch):
1"
Number of Flutes:
3
Length of Cut (Inch):
3-1/4"
Length of Cut (Decimal Inch):
3.2500"
Length of Cut (mm):
82.55mm
Shank Diameter (inch):
1"
Shank Diameter (Decimal Inch):
1"
Shank Diameter (mm):
25.40mm
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Series:
3835 AlumaMill
Ships:
From Partner Facility
