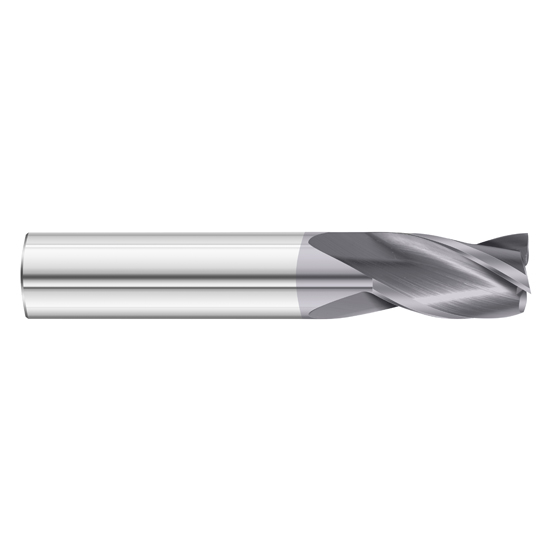

Fullerton Tool 92350 | 1mm Diameter x 3mm Shank x 4mm LOC x 38mm OAL 3 Flute TiAlN Solid Carbide Square End Mill

$19.24 $12.12
(You save $7.12)
Ships:
From Partner Facility
Brand:
Fullerton Tool
Mill Diameter (mm):
1mm
Number of Flutes:
3
Length of Cut (Decimal Inch):
0.1575"
Length of Cut (mm):
4mm
Shank Diameter (Decimal Inch):
0.1181"
Shank Diameter (mm):
3.00mm
Overall Length (mm):
38mm
Material:
Solid Carbide
Finish/Coating:
TiAlN
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Ships:
From Partner Facility
SKU:
25003722
UPC:
Weight:
0.05 LBS
Shipping:
Calculated at Checkout

Features

  • The 3300 General Purpose end mill has 3-flutes and was designed for use in titanium, super alloys, stainless steels, steels, cast iron, brass & copper, high si aluminum, and low si aluminum
  • It is offered in a variety of configurations
  • The 3300 General Purpose end mill is stocked uncoated and with TiAlN, TiCN, and TiN coatings

Product Specifications
Cutting Diameter (Decimal Inch) 0.0394"
Cutting Diameter (mm) 1.00mm
Cutting Flute Length (Decimal Inch) 0.1575"
Cutting Flute Length (mm) 4.00mm
Shank Diameter (Decimal Inch) 0.1181"
Shank Diameter (mm) 3.00mm
Overall Length (Decimal Inch) 1.4961"
Overall Length (mm) 38.00mm
Coating/Finish TIALN
Metric/Inch Metric
Number of Flutes 3
Helix Angle (Degrees) 30
Flute Spiral Direction Right Hand
Direction of Cut Right Hand
Point End Type Square
End Type Character Designation S
End Type Single End
Coolant Through Non Coolant Through
Weldon Flat No
Length Standard
Length Designator SD
