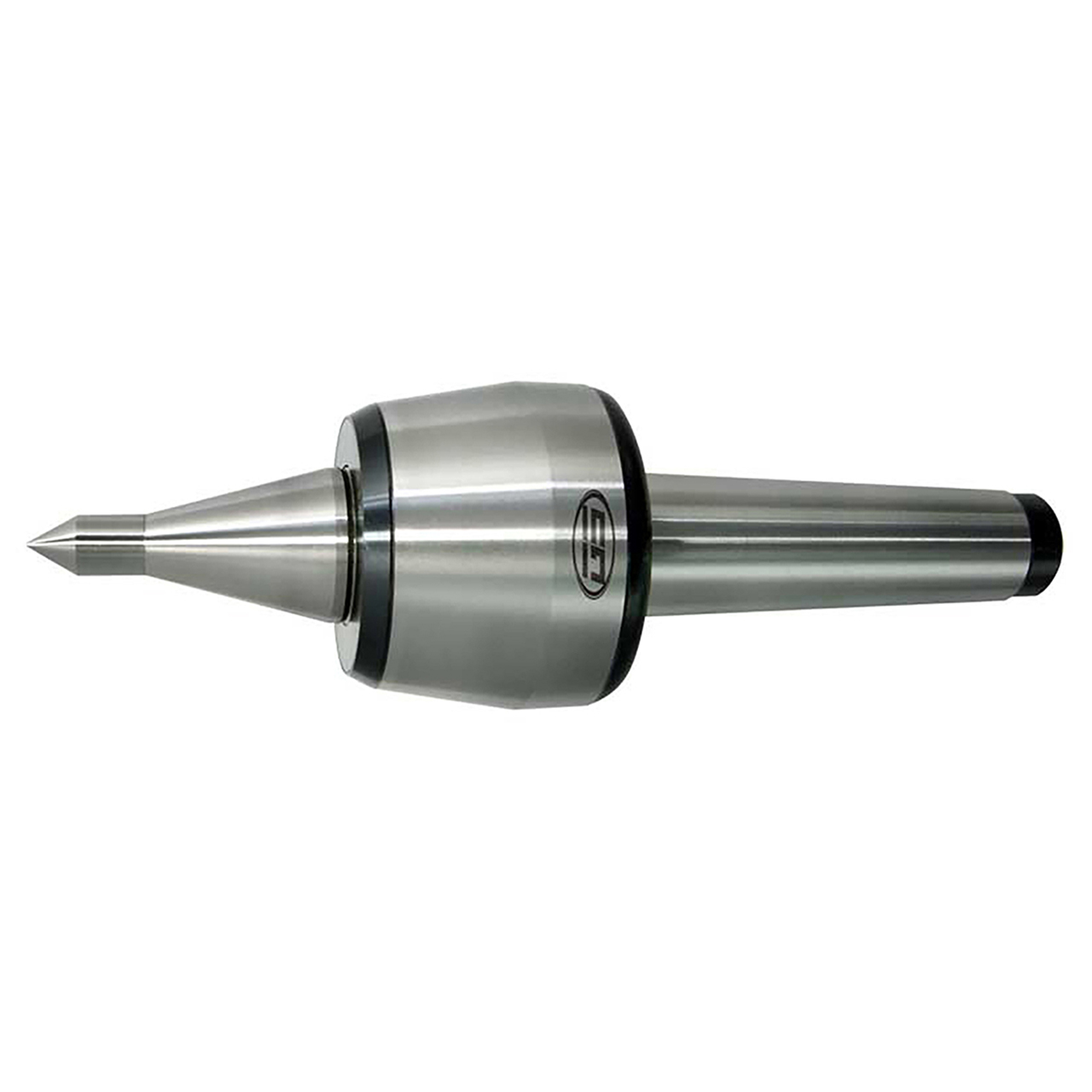

Features
- 60 degree point angle
- Accuracy guaranteed to 0.003mm TIR (0.0001")
- Excellent for CNC and conventional machines
- Heat treated point to HRC 60±2
- Heat treated drop-forged body (HRC 50±2) for extra strength, rigidity, and long life
- Shaft borehole for easy dismounting
- High performance lip seal and deflected shaft design protects bearing space from ingress by dust and coolant
- 4-Bearing System: A double row angular contact bearing, a radial ball bearing, and a rear needle roller bearing combine to provide excellent rigidity and high precision point concentricity
Product Specifications
| Manufacturer Part Number | 311018 |
| Shank Type | Taper Shank |
| Taper Size | MT4 |
| Maximum Workpiece Weight (kg) | 550kg |
| Point Diameter (mm) | 12.5mm |
| Product Type | Live Center |
