Features
- For dual contact spindles
- DIN coolant option - standard
- All ground body
- Improves rigidity and reduces vibration allowing for increased feed rates and increased tool life
Product Specifications

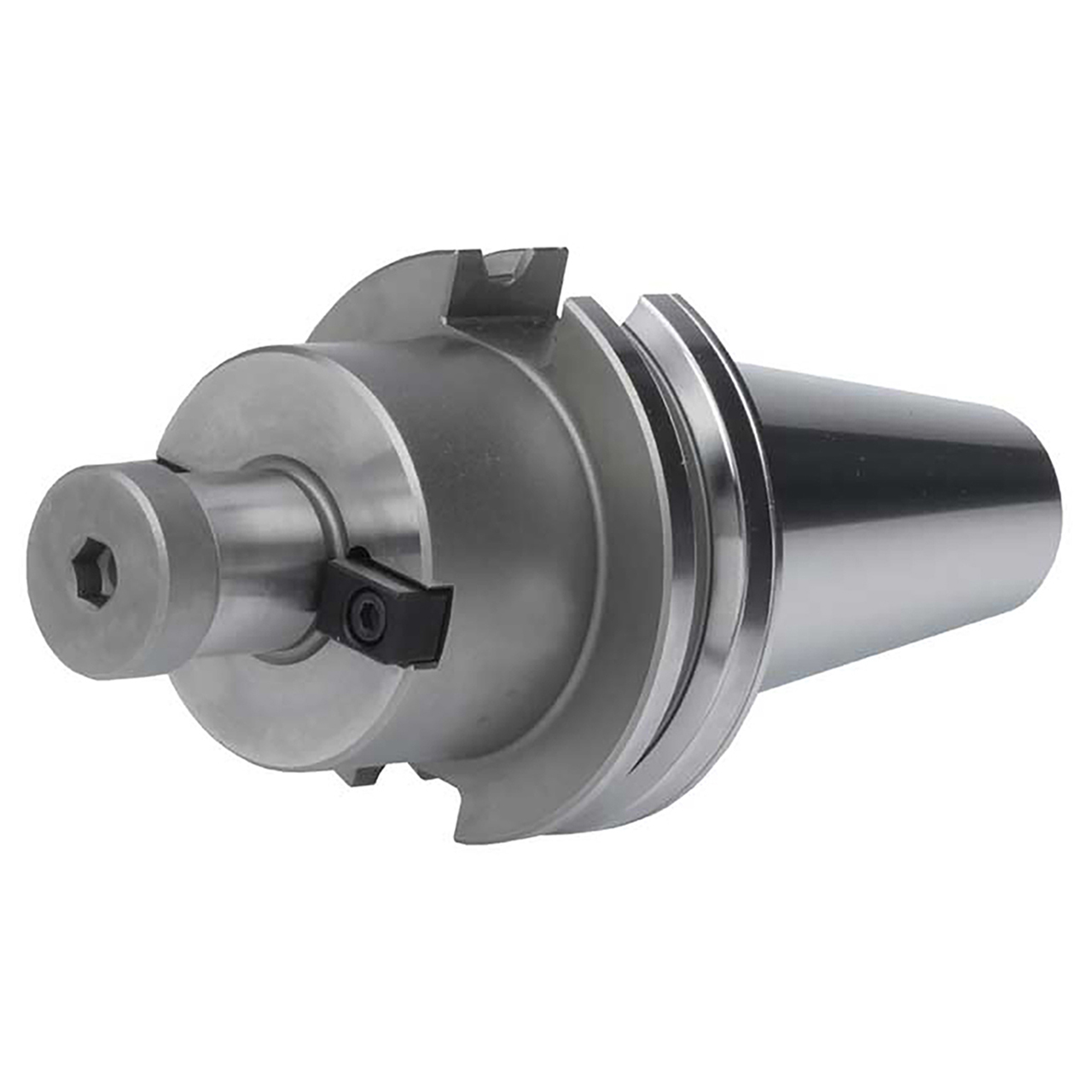

| Manufacturer Part Number | 521196 |
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Pilot Diameter (Inch) | 1" |
| Projection Flange to Nose End (Decimal Inch) | 1.75" |
| Nose Diameter (Decimal Inch) | 2.38" |
| Arbor Thread (Inch) | 1/2"-20 |
| Key Size (Inch) | 3/8" |
| Pilot Length (Decimal Inch) | 0.67" |
| Product Type | Shell Mill Holder |
