Features
- DIN Coolant option - standard
- All ground body
Product Specifications
| Manufacturer Part Number | 531236 |
| Shank Type | Taper Shank |
| Taper Size | CAT50 |
| Pilot Diameter (Inch) | 1-1/2" |
| Projection Flange to Nose End (Decimal Inch) | 6" |
| Nose Diameter (Decimal Inch) | 3.8" |
| Arbor Thread (Inch) | 3/4"-16 |
| Key Size (Inch) | 5/8" |
| Pilot Length (Decimal Inch) | 0.93" |

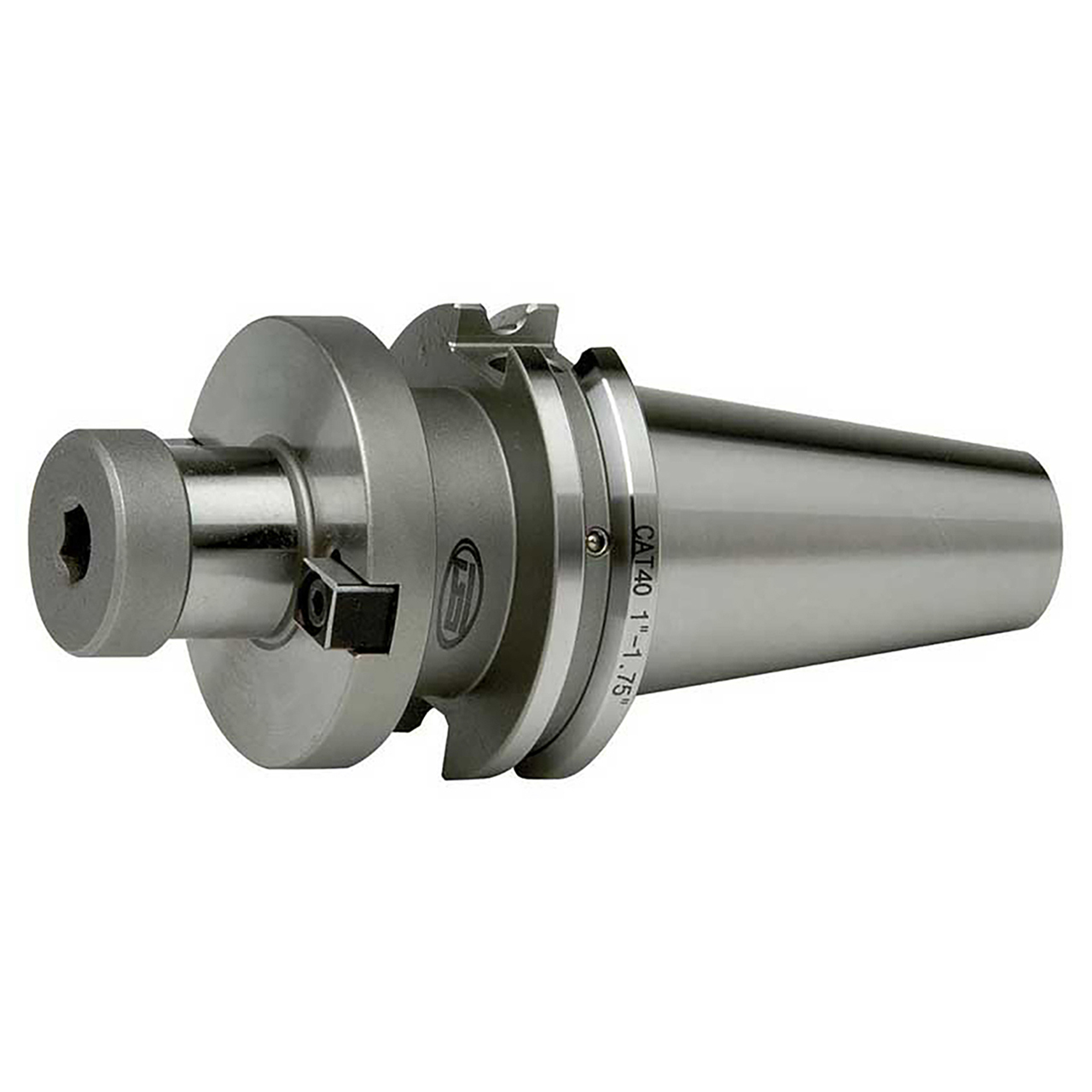

| Product Type | Shell Mill Holder |
