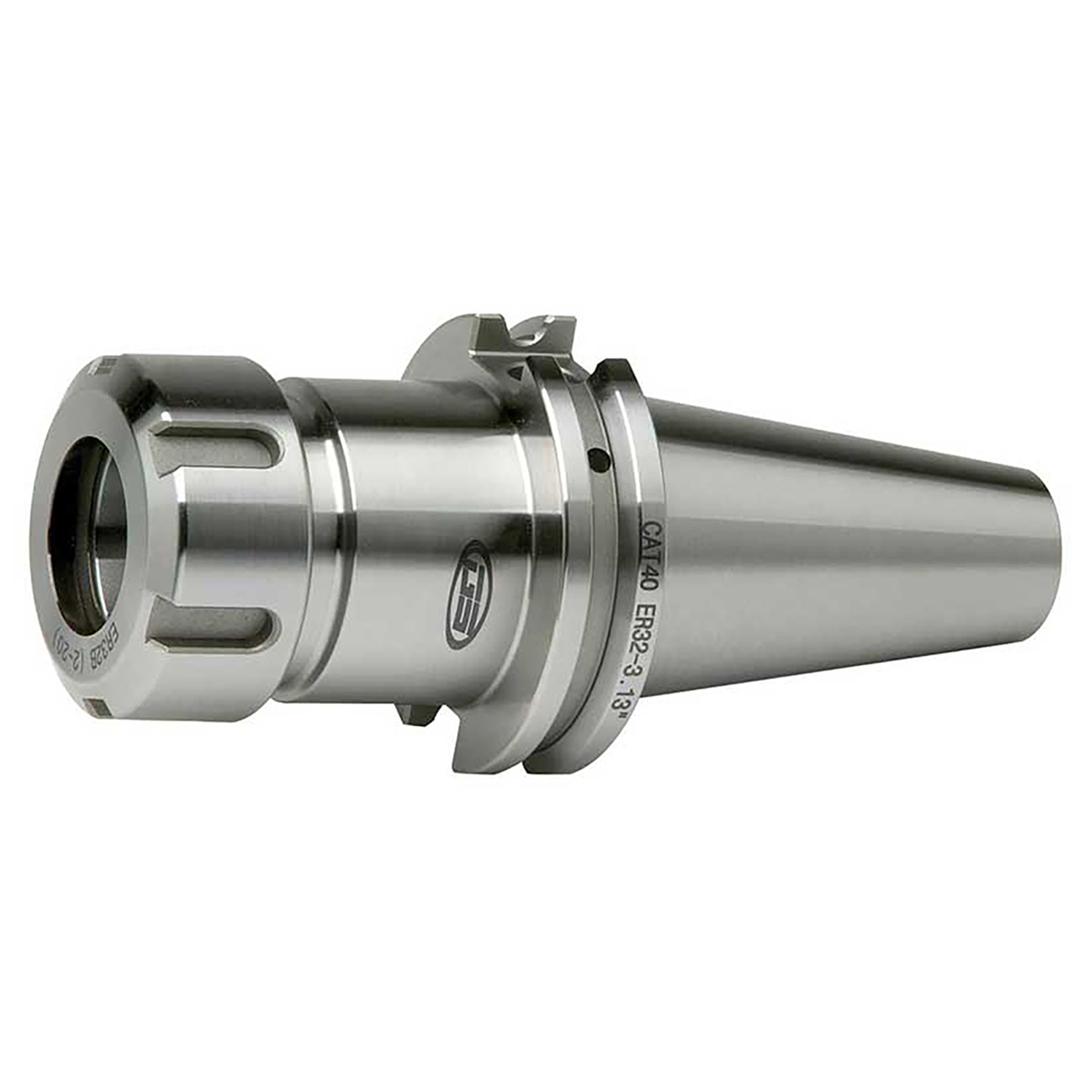

GS Tooling 531424 | 3.130" Projection CAT40 Size ER32 Collet Chuck

$132.62
SKU:
55000290
Weight:
2.85 LBS
Shipping:
Free Shipping
Features
  • DIN Coolant option-standard
  • All ground body
  • Factory balanced to save spindle life, tool life and increased productivity
  • Premium balanced to G2.5 @ 30,000 RPM
  • Threaded through holes for a back-up screw (tool stop) or coolant through when removed

Product Specifications
Manufacturer Part Number531424
Collet SystemER
Collet SeriesER32
Shank TypeTaper Shank
Taper SizeCAT40
Projection (Decimal Inch)3.13"
Minimum Collet Capacity (Decimal Inch)0.078"
Maximum Collet Capacity (Decimal Inch)0.787"
Balanced to (RPM)30000 RPM
Collet Nut Diameter (Decimal Inch)1.97"
Seat Depth (Decimal Inch)1.34"
Tightening Torque (Nm)169.5
Product TypeCollet Chuck
