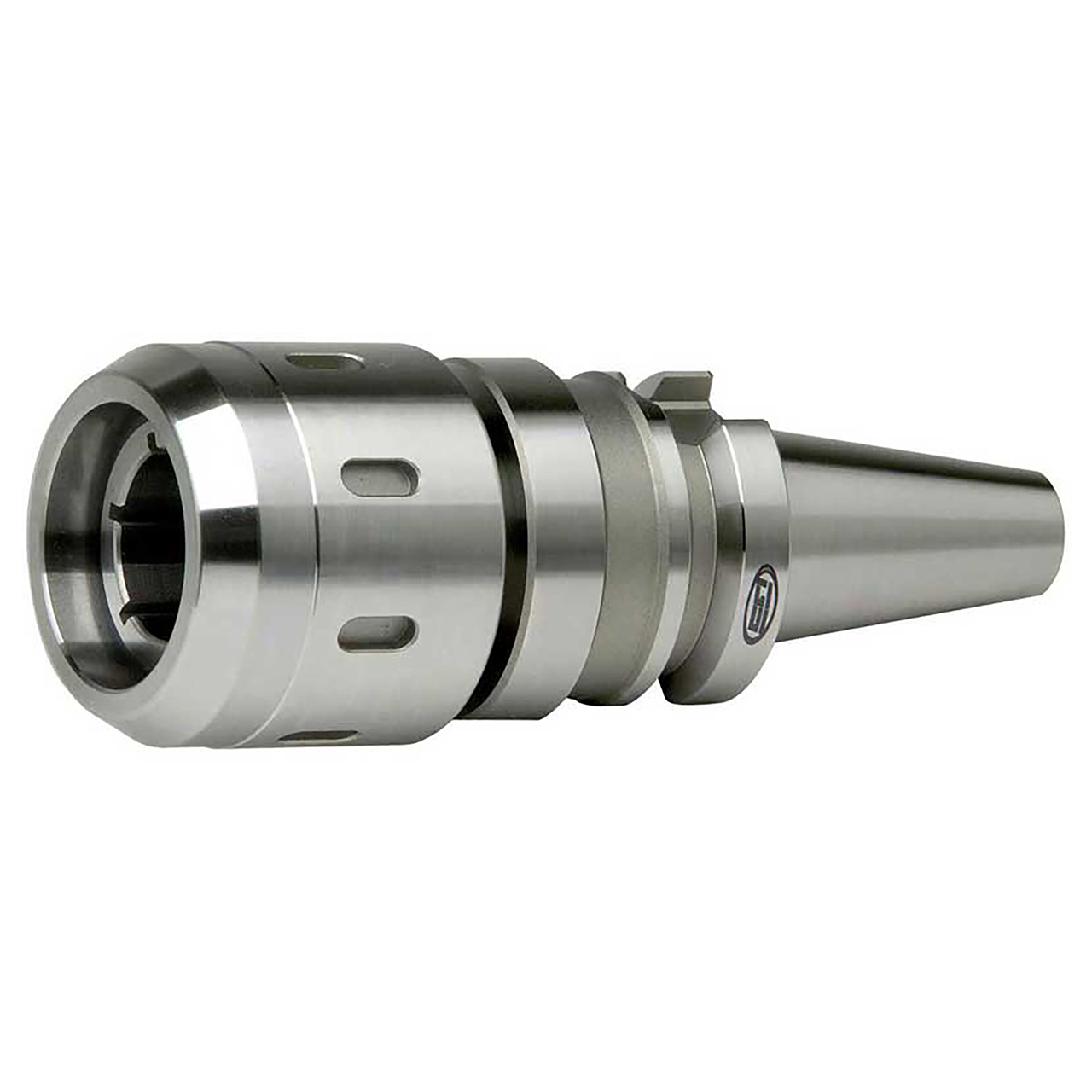

Product Specifications
| Manufacturer Part Number | 532100 |
| Taper Size | BT40 |
| Shank Type | Taper Shank |
| Hole Diameter (Decimal Inch) | 0.75" |
| Nose Diameter (Decimal Inch) | 2.05" |
| Projection (Decimal Inch) | 4.73" |
| Collet Range (Inch) | .125-.750" |
| Collet Series (Inch) | GS 3/4" |
| Seat Depth (Decimal Inch) | 3.15" |
| Tightening Torque (Nm) | 50-70 |
| Product Type | Milling Chuck |
