Features
- Shank traverse ground to obtain optimum accuracy
- Meets or exceeds ANSI specifications
- 0.0002" or better ensures the best possible cutting tool life
- Factory Balanced to save spindle life, tool life and increased productivity
- Threaded through holes for a back-up screw (tool stop) or coolant through when removed
- BT30/40 Premium balanced to 20,000 RPM
- BT50 Premium balanced to 15,000 RPM

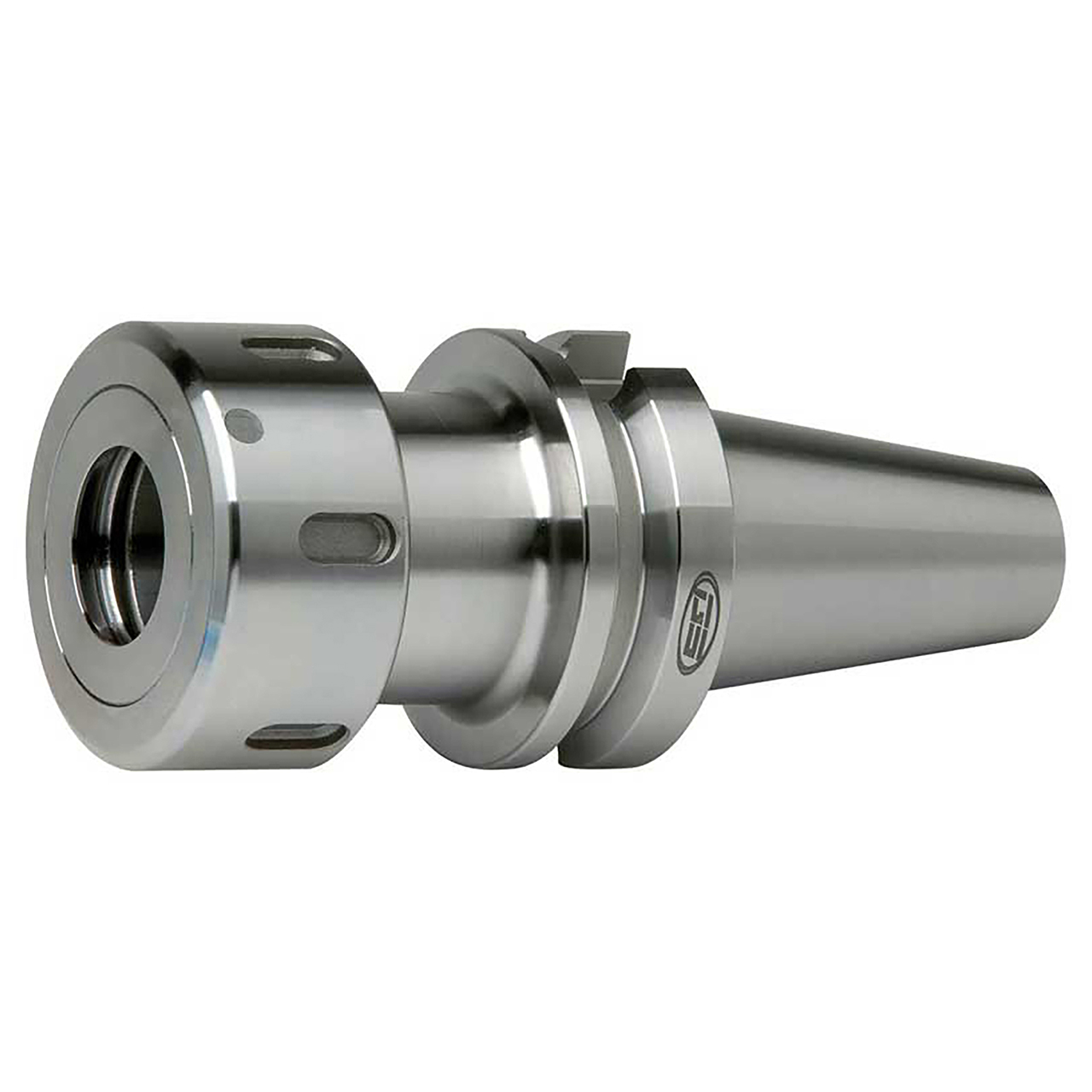

Product Specifications
| Manufacturer Part Number | 532128 |
| Collet System | Single Angle |
| Collet Series | TG75 |
| Shank Type | Taper Shank |
| Taper Size | BT30 |
| Projection (Decimal Inch) | 2.5" |
| Minimum Collet Capacity (Inch) | 3/64" |
| Maximum Collet Capacity (Inch) | 3/4" |
| Balanced to (RPM) | 30000 RPM |
| Collet Nut Diameter (Decimal Inch) | 1.89" |
| Seat Depth (Decimal Inch) | 1.61" |
| Tightening Torque (Nm) | 81.3 |
| Product Type | Collet Chuck |
