Features
- Coolant through capabilities
- All ground body
- High rigidity & torque transmission
- HSK63 Premium balanced to 30,000 RPM
- HSK100 Premium balanced to 25,000 RPM
Product Specifications

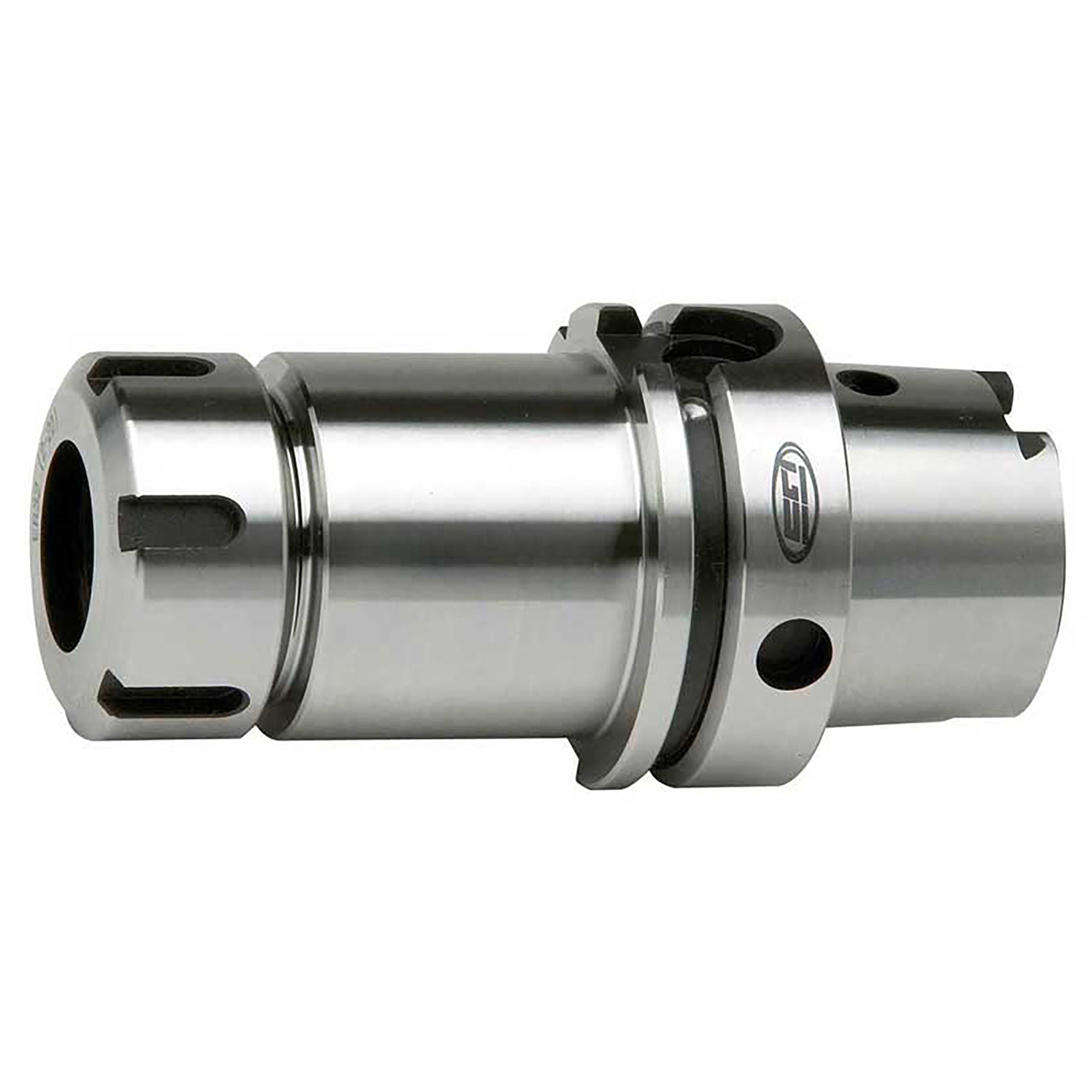

| Manufacturer Part Number | 536146 |
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Taper Shank |
| Taper Size | HSK100A |
| Projection (Decimal Inch) | 4" |
| Minimum Collet Capacity (Decimal Inch) | 0.078" |
| Maximum Collet Capacity (Decimal Inch) | 0.787" |
| Balanced to (RPM) | 25000 RPM |
| Collet Nut Diameter (Decimal Inch) | 1.969" |
| Seat Depth (Decimal Inch) | 1.26" |
| Tightening Torque (Nm) | 169.5 |
| Product Type | Collet Chuck |
