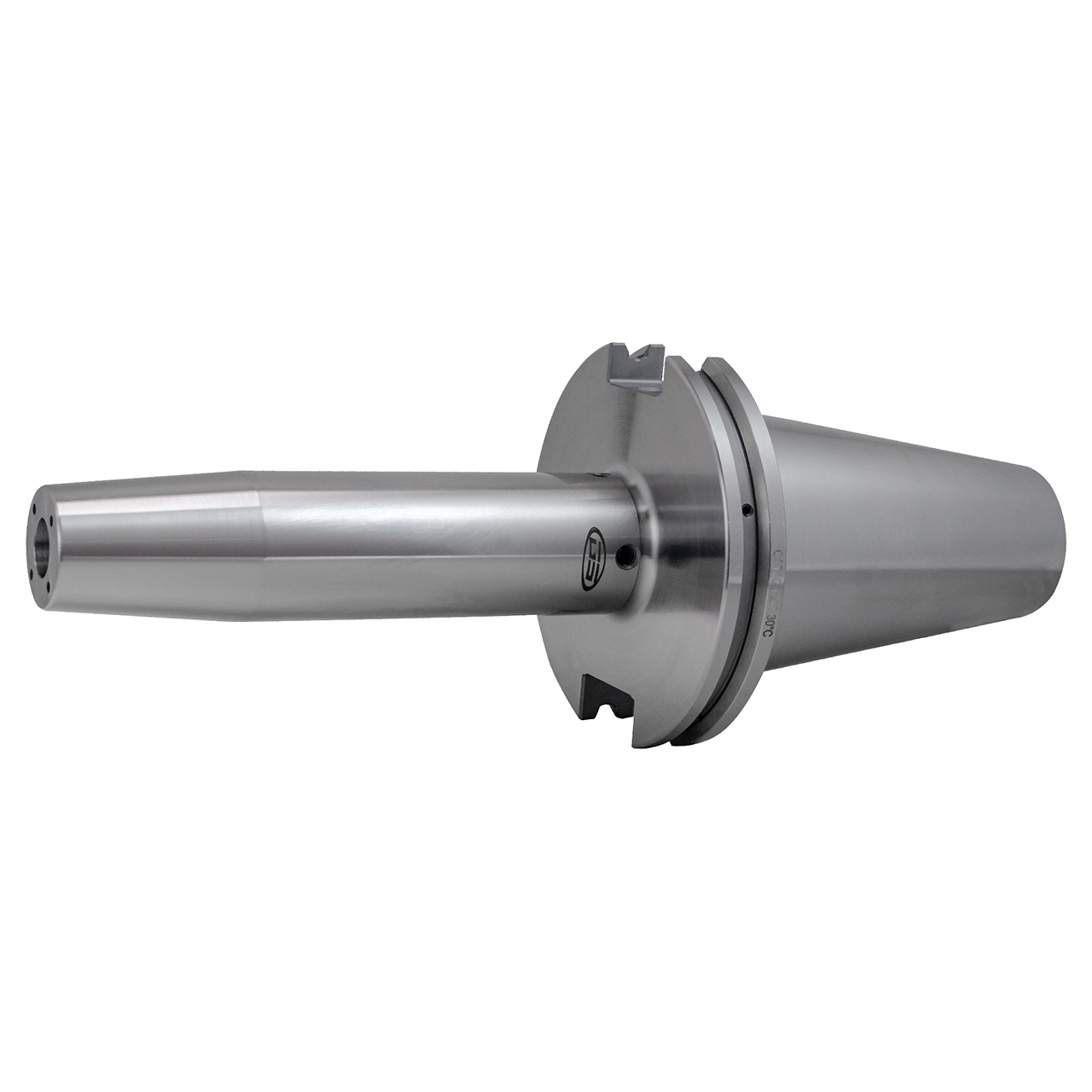

GS Tooling 541950 | CAT50 Size x 5/8" Diameter x 6.30" Projection Shrink-Fit Tool Holder

$414.48 $356.45
(You save $58.03)
Brand:
GS Tooling
interval quantity:
1
SKU:
55039947
UPC:
Weight:
7.70 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

Features
  • Unsurpassed Accuracy: Concentricity of ≤0.0001" (3µm) with tool shrunk in holder
  • Coolant Ports: Each holder has 4 coolant ports in the nose to ensure coolant gets right to the tool
  • Maximum Gripping Torque: Tool is gripped 360 degree along the entire length of bore producing very high gripping torque, preventing chatter
  • Increased Production: Decrease down time - the total time elapsed to remove one cutting tool and insert another is less than 10 seconds
  • Balanced: GS follows the strictest balance standards. This holders are pre-balanced G2.5 up to 30,000 RPM
  • Extended Holder Life: With double tempered tool steel construction, reduced centrifugal forces, minimized bore contamination, and minimized chatter, a GS shrink fit toolholder should far outlast a standard end mill holder
  • Chip load distributed evenly along cutting edge of tool which results in longer tool life
  • Short projections are possible because no mechanical clamping devices are used. This results in greater rigidity and resistance to bending
  • Since shrink fit toolholders have no moving parts they offer the greatest repeatability of any tool holding system on the market

Product Specifications
Manufacturer Part Number541950
Shank TypeTaper Shank
Taper SizeCAT50
Hole Diameter (Inch)5/8"
Projection (Decimal Inch)6.30"
Nose Diameter (Decimal Inch)1.06"
Through CoolantYes
Product TypeShrink-Fit Tool Holder
