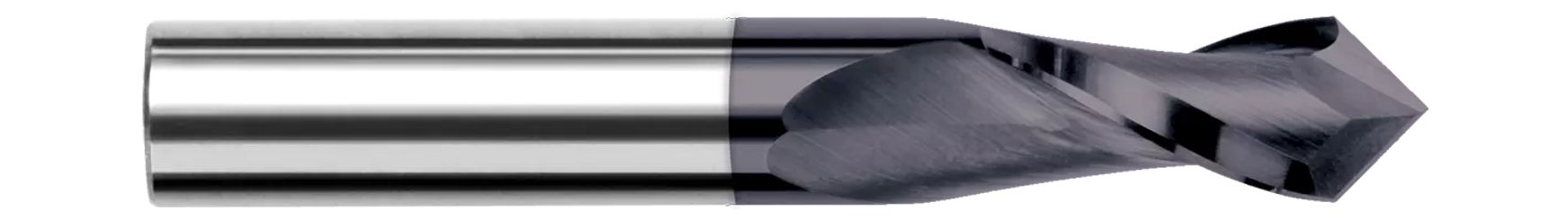

Harvey Tool 15371-2 | 0.0400" Diameter x 1/8" Shank x 1/8" OAL 90 Degree Angle 2 Flute Uncoated Carbide Drill Mill

$36.60
Brand:
Harvey Tool
Shank Diameter (Inch):
1/8"
Length of Cut (Inch):
1/8"
Length of Cut (Decimal Inch):
0.1250"
Included Angle:
90 Degree
Number of Flutes:
2
Finish/Coating:
Uncoated
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
SKU:
25185801
UPC:
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
15371-2

Designed for chamfering, milling, and some spotting applications, this Harvey Tool offering of fully stocked Drill / End Mills.

  • Designed for chamfering, milling, and some spotting applications
  • Not recommended for drilling steel
  • 2 flutes
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.0400"
Length of Cut (Inch)0.1250" (1/8)
Overall Length (Inch)1.5000" (1-1/2)
Number of Flutes2
Angle per Side45
Included Angle90
LOC Multiple3x
Web Thickness0.0030"
Shank Diameter (Inch)0.1250" (1/8)
Coating/FinishUncoated
