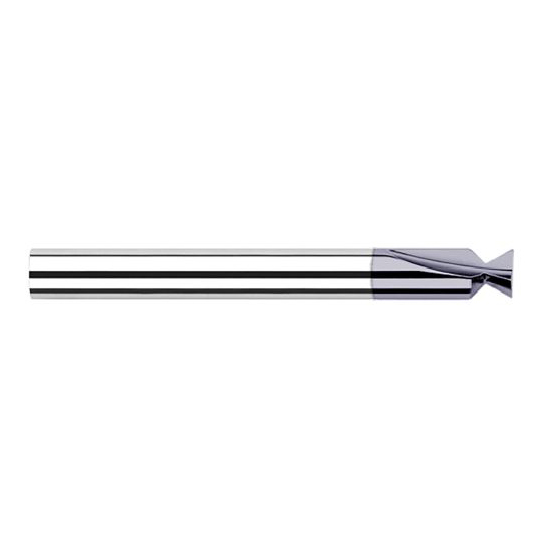

Harvey Tool 16440-C3 | 5/8" Diameter 20 Degree Included Angle AlTiN Coated Solid Carbide Dovetail Cutter

$224.60
Ships:
From Partner Facility
Brand:
Harvey Tool
Included Angle:
20 Degree
Cutting Diameter (Inch):
5/8"
Cutting Diameter (Decimal Inch):
0.6250"
Cutting Width (Inch):
5/8"
Cutting Width (Decimal Inch):
0.6250"
Tip Radius:
0.0100"
Material:
Solid Carbide
Finish/Coating:
AlTiN
Ships:
From Partner Facility
interval quantity:
1
SKU:
25107386
UPC:
Weight:
0.39 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Harvey Tool 16440-C3 | 5/8" Diameter 20 Degree Included Angle AlTiN Coated Solid Carbide Dovetail Cutter

Related Products

Product Specifications
Mill Diameter (Decimal Inch) 0.6250"
Mill Diameter (Inch) 5/8"
Neck Diameter (Decimal Inch) 0.4090"
Length Of Cut (Decimal Inch) 0.6250"
Length Of Cut (Inch) 5/8"
Overall Length (Decimal Inch) 3.0000"
Overall Length (Inch) 3"
Corner Radius (Decimal Inch) 0.0100"
Angle Per Side 10 Degree
Included Angle 20 Degree
Number of Flutes 4
Shank Diameter (Decimal Inch) 0.6250"
Shank Diameter (Inch) 5/8"
Metric No
Coating AlTiN
