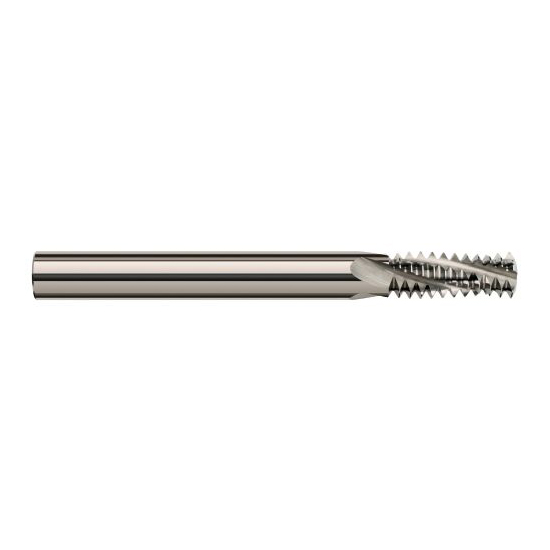

Features
- Cuts Internal and External 60 DegreeUN Threads
- Helical Flutes
- Fractional Shanks
- Mills Right Hand and Left Hand Threads
- Able to cut larger threads of the same pitch
- Solid Carbide
- CNC ground in the USA
Product Specifications
| Size | M3-0.50 |
| Milling Diameter (Decimal Inch) | 0.0850" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (Inch) | 1/8" |
| Number of Flutes | 3 |
| Length of Cut (Decimal Inch) | 0.1780" |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (Inch) | 2" |
| Finish/Coating | Uncoated |
| Material | Carbide |
| Coolant Through (Yes/No) | No |
| Included Angle | 60 Degree |
| Single or Double | Single |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Thread Size (mm):
M3-0.50
Cutter Diameter (Decimal Inch):
0.0850"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Number of Flutes:
3
Length of Cut (Decimal Inch):
0.1780"
Finish/Coating:
Uncoated
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
