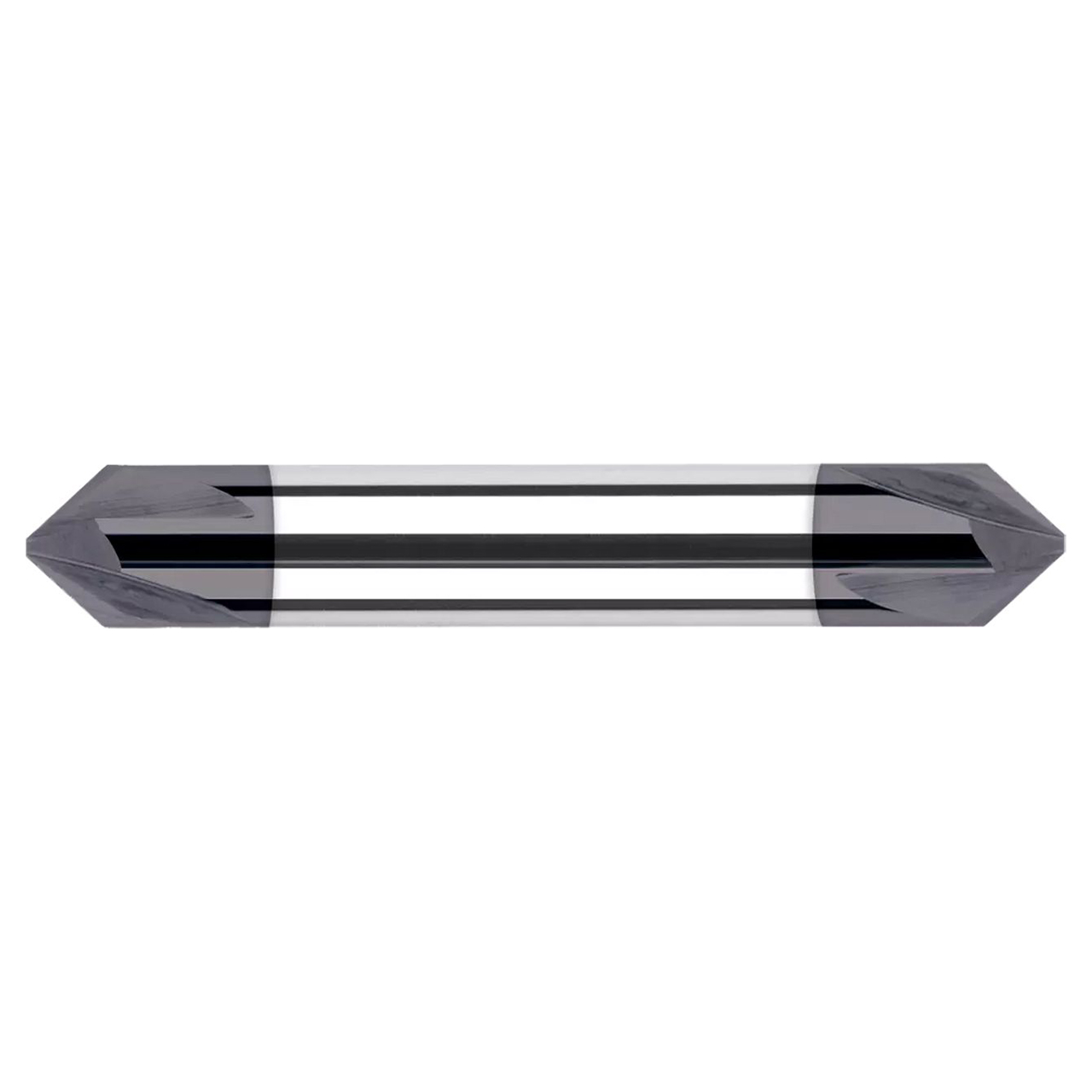

This offering of Harvey Tool chamfer cutters - pointed & flat end - double-ended feature tools in two unique styles: pointed, where a flat relief is ground to center, yielding a web thickness at the top; and flat end, where the flat relief is ground to a non-end cutting flat tip.
Features- Double-ended
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 18641 |
| Length of Cut (Inch) | 0.2420" |
| Overall Length (Inch) | 3.0000" (3) |
| Tip (Inch) | 0.0800" |
| Shank Diameter (Inch) | 0.5000" (1/2) |
| Angle per Side | 41 Degree |
| Included Angle | 82 Degree |
| Number of Flutes | 4 |
| Coating | Uncoated |
| Double Ended | Yes |
| Type | II |
| Profile | Flat |
