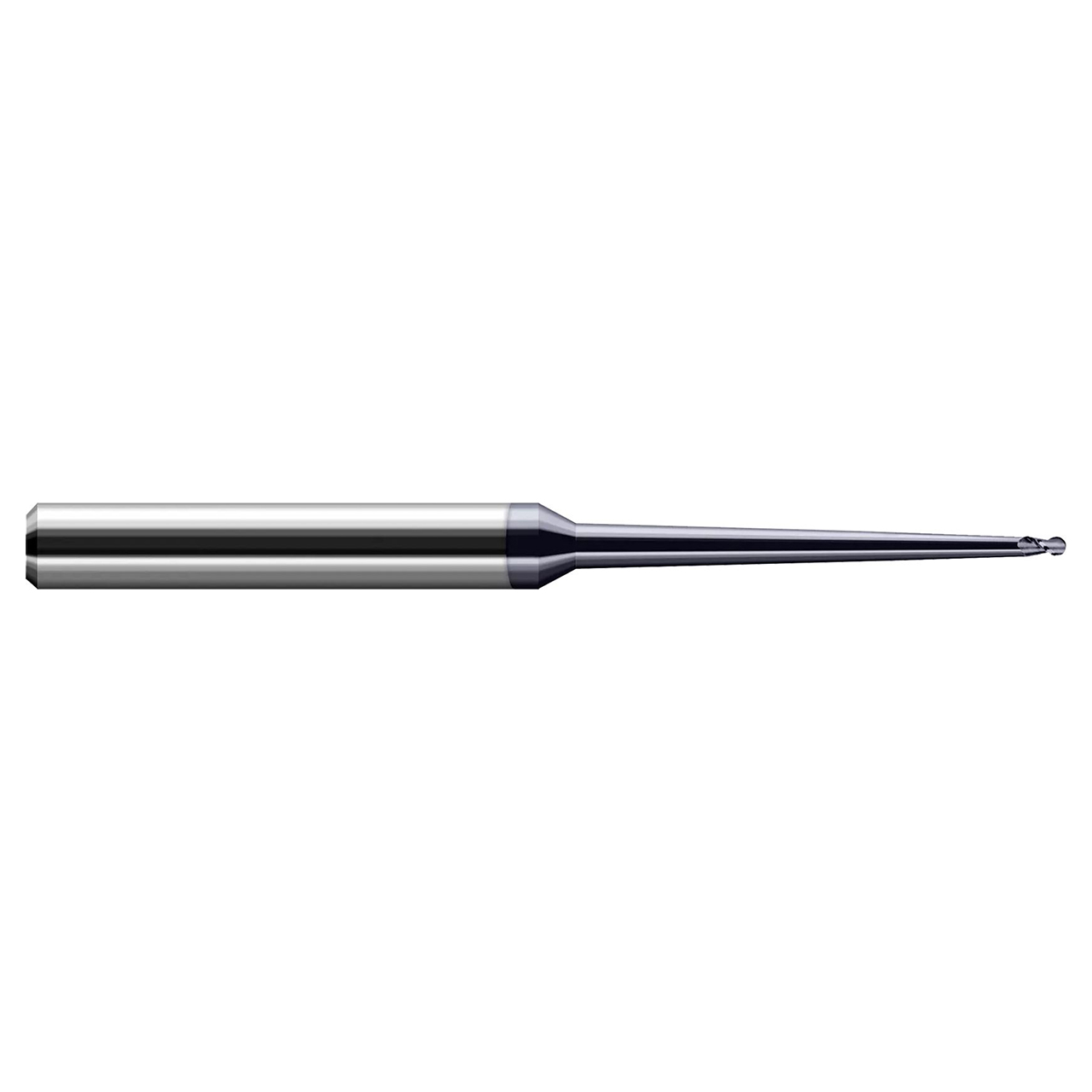

Features
- Designed for deep cavity profiling
- 2 Degree tapered neck design minimizes deflection and maximizes wall clearance
- Length of cut = 1½ x diameter
- Neck behind length of cut is reduced for 1x diameter
- h6 shank tolerance for high precision tool holders
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | 18909-C6 |
| Cutter Diameter (Inch) | 0.1410" |
| Neck Diameter (Inch) | 0.2280" |
| Minor Diameter (Inch) | 0.1310" |
| Length of Cut (Inch) | 0.2109" |
| Tapered Reach (Inch) | 1.7500" (1-3/4) |
| Overall Reach (Inch) | 2.0000" (2) |
| Overall Length (Inch) | 4.0000" (4) |
| Neck Length (Inch) | 0.3515" |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Neck Angle | 4 Degree |
| Number of Flutes | 2 |
| LOC Multiple | (1.5x) |
| Coating | C6 |
| Profile | Ball |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.1410"
Neck Diameter (Decimal Inch):
0.2280"
Number of Flutes:
2
Length of Cut (Decimal Inch):
0.2109"
Neck Length (Decimal Inch):
0.3515"
Overall Reach (Decimal Inch):
2.0000"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
C6
