Product Specifications
| Cutter Diameter (Decimal Inch) | 0.0300" |
| Length of Cut (Decimal Inch) | 0.3000" |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Angle per Side | 3 Degree |
| Included Angle | 6 Degree |
| Number of Flutes | 3 |
| LOC Multiple | 10x |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Metric (Yes/No) | No |
| Center Cutting (Yes/No) | No |
| Chip Breaker (Yes/No) | No |
| Finish/Coating | TiB2 |
| Double Ended (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

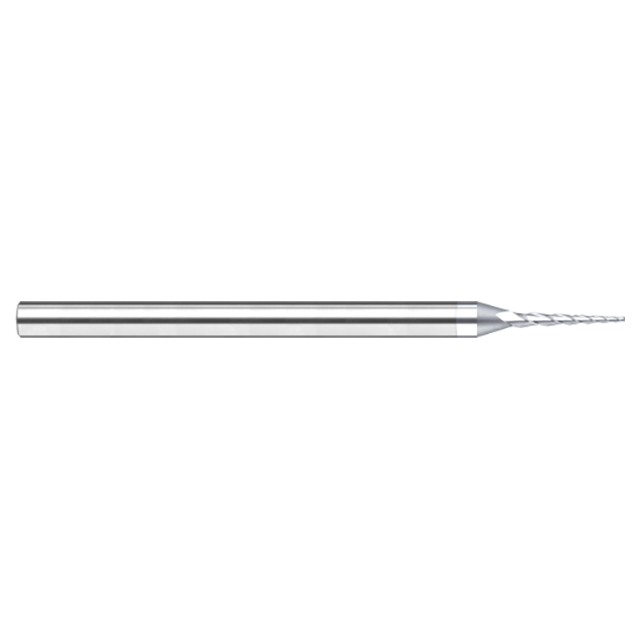

Brand:
Harvey Tool
Material:
Carbide
End Type:
Square
Taper Angle Per Side:
3 Degree
Small End Diameter (Decimal Inch):
0.0300"
Length of Cut (Decimal Inch):
0.3000"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Number of Flutes:
3
Finish/Coating:
TiB2
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Ships:
From Partner Facility
