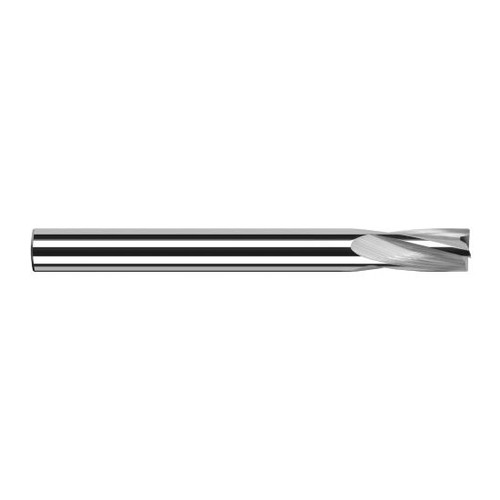

Harvey Tool 23421 | 21/64" Diameter x 1" LOC x 1" Shank x 2-1/2" OAL 4FL Uncoated Coated Carbide Flat Bottom Counterbores

$67.80
Ships:
From Partner Facility
Brand:
Harvey Tool
Cutting Diameter (Inch):
21/64"
Cutting Diameter (Decimal Inch):
0.3281"
Flute Length (Inch):
1"
Overall Reach (Inch):
2-1/2"
Shank Diameter (Inch):
3/8"
Overall Length (Inch):
2-1/2"
Number of Flutes:
4
Finish/Coating:
Uncoated
Material:
Carbide
Ships:
From Partner Facility
interval quantity:
1
SKU:
10101032
UPC:
Weight:
0.14 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Harvey Tool 23421 | 21/64" Diameter x 1" LOC x 1" Shank x 2-1/2" OAL 4FL Uncoated Coated Carbide Flat Bottom Counterbores

Related Products

Features
  • For spot facing or counterboring on irregular surfaces
  • Flat Bottom (No Dish) design allows spot facing or counterboring on irregular surfaces
  • Ideal for castings, rounded parts, concaved, or drafted surfaces
  • Can be used for flat bottom reaming or straightening misaligned holes
  • Center cutting
  • Ground with full cylindrical margin (not side cutting)
  • 15 Degree helix
  • 4 flutes
  • Solid carbide
  • AlTiN coating for increased performance in ferrous materials
  • AlTiN Nano coating for superior performance in ferrous and difficult to machine materials
  • CNC ground in the USA
Product Specifications
Mill Diameter (Inch) 21/64"
Mill Diameter (Decimal Inch) 0.3281"
Flute Length (Inch) 1"
Flute Length (Decimal Inch) 1.0000"
Shank Diameter (Inch) 3/8"
Shank Diameter (Decimal Inch) 0.3750"
Overall Length (Decimal Inch) 2.5000"
Overall Length (Inch) 2-1/2"
Number of Flutes 4
Finish/Coating Uncoated
Material Solid Carbide
Single or Double Single
