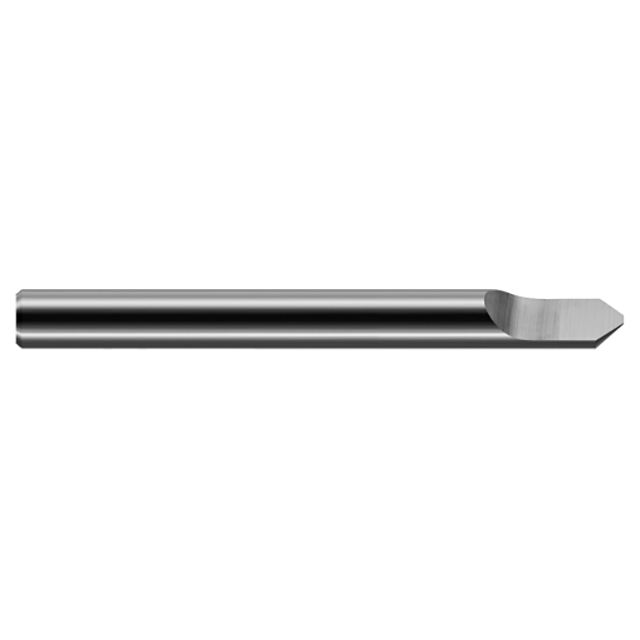

Harvey Tool 25236 | 30 Degree Included Angle x 1/4" Shank x 2-1/2" OAL Uncoated Carbide Engraving Cutter

$28.50
Ships:
From Partner Facility
Brand:
Harvey Tool
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Length of Cut (Decimal Inch):
0.4110"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Finish/Coating:
Uncoated
Material:
Carbide
Included Angle:
30 Degree
Ships:
From Partner Facility
IsDiscontinued:
SKU:
25166400
UPC:
Weight:
0.10 LBS
Shipping:
Calculated at Checkout
Product Specifications
Length of Cut (Decimal Inch) 0.4110"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.5000"
Angle per Side 15 Degree
Included Angle 30 Degree
Number of Flutes 1
Flat on Part (Decimal Inch) 0.0300"
Type II
Split Length (Inch) 1/8"
Split Length (Decimal Inch) 0.1250"
Shank Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.2500"
Metric (Yes/No) No
Center Cutting (Yes/No) No
Chip Breaker (Yes/No) No
Finish/Coating Uncoated
Double Ended (Yes/No) No
Weldon Flat (Yes/No) No
Coolant Through (Yes/No) No
