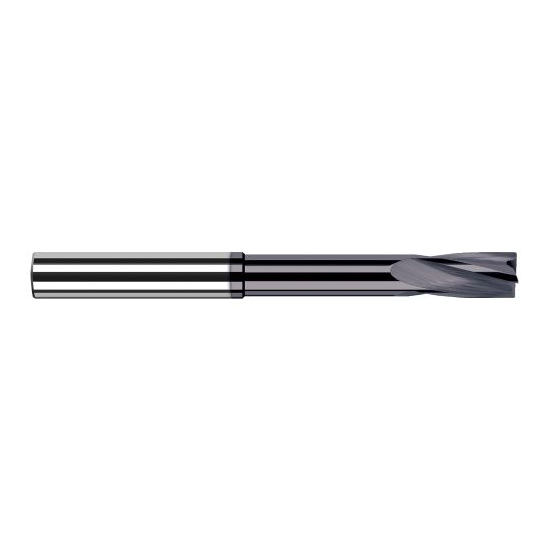

Features
- Undersized neck to avoid heeling
- Flat Bottom (No Dish) design allows spot facing or counterboring on irregular surfaces
- Ideal for castings, rounded parts, concaved or drafted surfaces
- Can be used for flat bottom reaming or straightening misaligned holes
- Center cutting
- Ground with full cylidrical margin (not side cutting)
- 15 Degree Helix
- 4 Flutes
- Solid carbide
- CNC ground in the USA
Product Specifications
| Mill Diameter (Inch) | 15/64" |
| Mill Diameter (Decimal Inch) | 0.2344" |
| Flute Length (Inch) | 7/8" |
| Flute Length (Decimal Inch) | 0.8750" |
| Overall Reach (Inch) | 1-7/8" |
| Overall Reach (Decimal Inch) | 1.8750" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (Inch) | 4" |
| Number of Flutes | 4 |
| Finish/Coating | AlTiN |
| Material | Solid Carbide |
| Single or Double | Single |
| Neck Diameter (Decimal Inch) | 0.1990" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutting Diameter (Inch):
15/64"
Cutting Diameter (Decimal Inch):
0.2344"
Flute Length (Inch):
7/8"
Overall Reach (Inch):
4"
Shank Diameter (Inch):
1/4"
Overall Length (Inch):
4"
Number of Flutes:
4
Finish/Coating:
AlTiN
Material:
Carbide
Ships:
From Partner Facility
IsDiscontinued:
