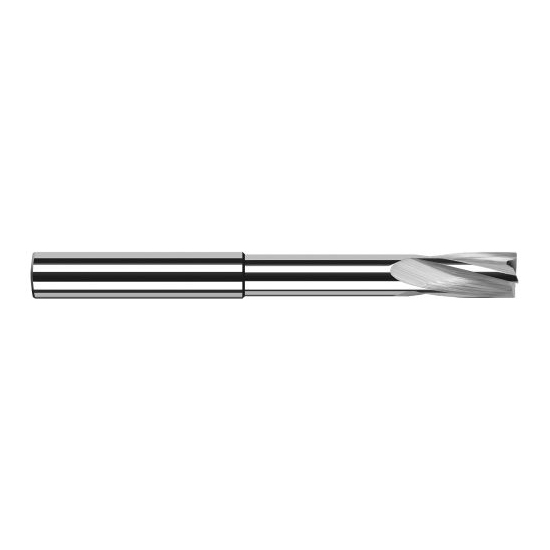

Features
- Undersized neck to avoid heeling
- Flat Bottom (No Dish) design allows spot facing or counterboring on irregular surfaces
- Ideal for castings, rounded parts, concaved or drafted surfaces
- Can be used for flat bottom reaming or straightening misaligned holes
- Center cutting
- Ground with full cylidrical margin (not side cutting)
- 15 Degree Helix
- 4 Flutes
- Solid carbide
- CNC ground in the USA
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1575" |
| Flute Length (Inch) | 5/8" |
| Flute Length (Decimal Inch) | 0.6250" |
| Overall Reach (Inch) | 1-1/4" |
| Overall Reach (Decimal Inch) | 1.2500" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (Inch) | 3" |
| Number of Flutes | 4 |
| Finish/Coating | Uncoated |
| Material | Solid Carbide |
| Single or Double | Single |
| Neck Diameter (Decimal Inch) | 0.1340" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutting Diameter (Decimal Inch):
0.1575"
Cutting Diameter (mm):
4mm
Flute Length (Inch):
5/8"
Overall Reach (Inch):
3"
Shank Diameter (Inch):
3/16"
Overall Length (Inch):
3"
Number of Flutes:
4
Finish/Coating:
Uncoated
Material:
Carbide
Ships:
From Partner Facility
