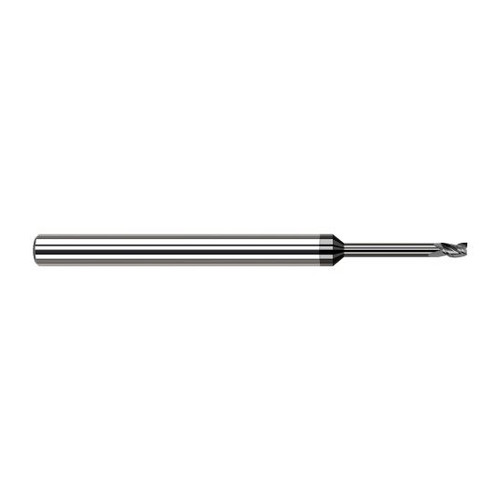

Harvey Tool 33231-C4 | 1/32" Diameter x 1/8" Shank x 3/64" LOC x 2-1/2" OAL 3FL Amorphous Diamond Coated Carbide Square End Mill

$53.00
Ships:
From Partner Facility
Brand:
Harvey Tool
Mill Diameter (Inch):
1/32"
Mill Diameter (Decimal Inch):
0.0310"
Number of Flutes:
3
Material:
Carbide
Finish/Coating:
Amorphous Diamond
Length of Cut (Inch):
3/64"
Length of Cut (Decimal Inch):
0.0470"
Shank Type:
Reduced
Overall Reach (Inch):
5/32"
Overall Reach (Decimal Inch):
0.1560"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Single or Double End:
Single
Center Cutting:
Yes
Cutting Direction:
Right
Ships:
From Partner Facility
SKU:
25117776
UPC:
Weight:
0.02 LBS
Shipping:
Calculated at Checkout
Product Specifications
Mill Diameter (Inch) 1/32"
Mill Diameter (Decimal Inch) 0.0310"
Number of Flutes 3
Finish/Coating Amorphous Diamond
Length Of Cut (Inch) 3/64"
Length Of Cut (Decimal Inch) 0.0470"
Overall Reach (Inch) 5/32"
Overall Reach (Decimal Inch) 0.1560"
Overall Length (Inch) 2-1/2"
Overall Length (Decimal Inch) 2.5000"
Shank Diameter (Inch) 1/8"
Shank Diameter (Decimal Inch) 0.1250"
Center Cutting (Yes/No) Yes
Neck Diameter (Decimal Inch) 0.0300"
LOC Multiple 1.5x
Reach Multiple 5x
