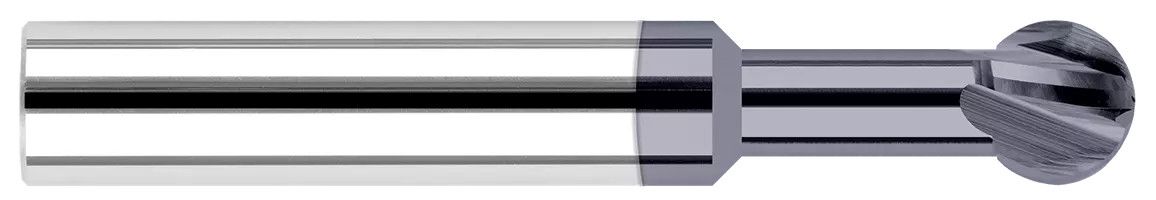

Harvey Tool 41305-C3 | 0.0780" Cutter DIA x 0.3120" (5/16) Neck Length x 270 Degree Carbide Undercutting End Mill, 2 Flutes, AlTiN Coated

Brand:

Harvey Tool

Cutter Diameter (Inch):

5/64"

Cutter Diameter (Decimal Inch):

0.0781"

Neck Diameter (Decimal Inch):

0.0450"

Radius (Decimal Inch):

0.0391"

Number of Flutes:

2

Length of Cut (Decimal Inch):

0.0666"

Neck Length (Inch):

5/16"

Neck Length (Decimal Inch):

0.3120"

Overall Reach (Decimal Inch):

0.3790"

Overall Length (Inch):

1-1/2"

Overall Length (Decimal Inch):

1.5000"

Shank Diameter (Inch):

1/8"

Shank Diameter (Decimal Inch):

0.1250"

Shank Diameter (mm):

3.18mm

Finish/Coating:

C3

SKU:

25179211

UPC:

Weight:

0.01 LBS
