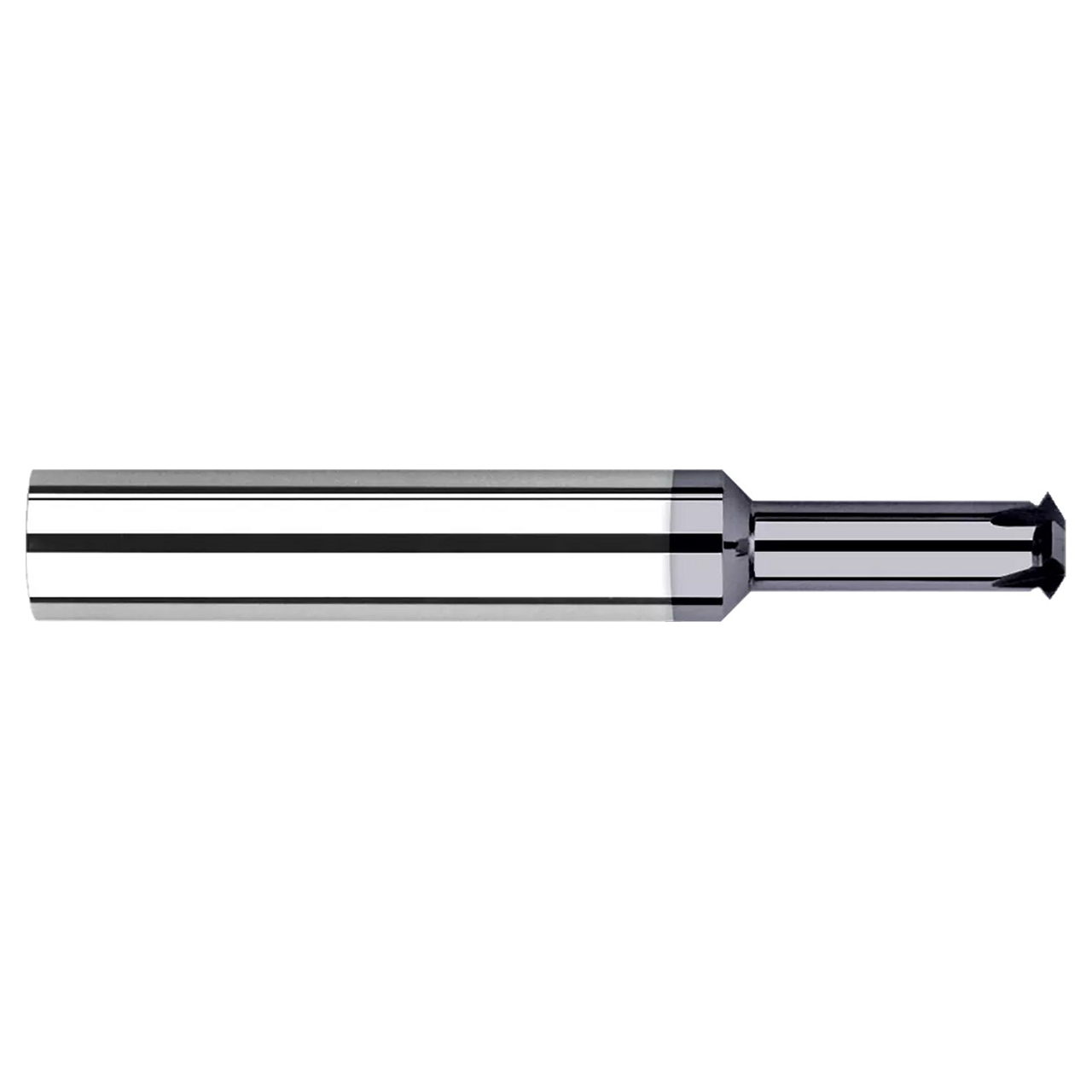

Harvey Tool 54265-C3 | 0.3400" Diameter x 0.0640" LOC x 0.3750" (3/8) Shank x 4 Flute AlTiN Coated Carbide Multi-Form Thread Milling Cutter

$159.90
Brand:
Harvey Tool
Cutter Diameter (Decimal Inch):
0.3400"
Neck Diameter (Decimal Inch):
0.2300"
Length of Cut (Decimal Inch):
0.0640"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Included Angle:
60 Degree
Number of Flutes:
4
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Finish/Coating:
C3
interval quantity:
1
SKU:
25211179
UPC:
Weight:
0.13 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Harvey Tool Thread Milling Cutters - Single Form - UN Threads can mill multiple pitches, and cut internal and external

  • Tip of included angle ground to a point
  • Mills right hand and left hand threads
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number54265-C3
Cutter Diameter (Inch)0.3400"
Neck Diameter (Inch)0.2300"
Length of Cut (Inch)0.0640"
Overall Length (Inch)3.0000" (3)
Max Depth of Thread (Inch)1.2500" (1-1/4)
Angle per Side30
Included Angle60
Flutes4
Size7/16
Shank Diameter (Inch)0.3750" (3/8)
CoatingC3
