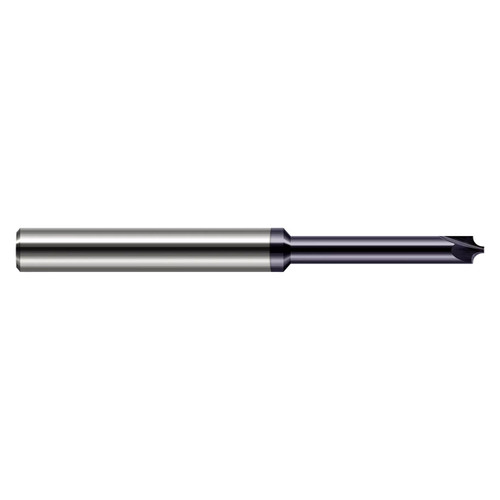

Harvey Tool 57415-C3 | 0.020" Pilot Diameter x 1/8" Shank x 0.015" Radius x 2" OAL 2 Flute C3 Coated Corner Rounding End Mill

$55.60
Brand:
Harvey Tool
Radius (Inch):
1/64"
Radius (Decimal Inch):
0.0150"
Radius (mm):
0.38mm
Number of Flutes:
2
Finish/Coating:
C3
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Interval quantity:
1
SKU:
25352023
Weight:
0.01 LBS
Shipping:
Calculated at Checkout
Harvey Tool 57415-C3 | 0.020" Pilot Diameter x 1/8" Shank x 0.015" Radius x 2" OAL 2 Flute C3 Coated Corner Rounding End Mill

Product Specifications
Manufacturer Part Number57415-C3
Pilot Diameter (Decimal Inch)0.020"
Pilot Diameter (mm)0.50mm
Neck Diameter (Decimal Inch)0.093"
Neck Diameter (Inch)3/32"
Overall Reach (Decimal Inch)0.750"
Overall Reach (Inch)3/4"
Overall Length (Decimal Inch)2.000"
Overall Length (Inch)2"
Radius (Decimal Inch)0.015"
Radius (Inch)1/64"
Number of Flute2
Reach Multiple(8x)
Shank Diameter (Decimal Inch)0.125"
Shank Diameter (Inch)1/8"
MetricNo
CoatingC3
Pilot Flare5
Shoulder Flare5
Product TypeCorner Rounding End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
