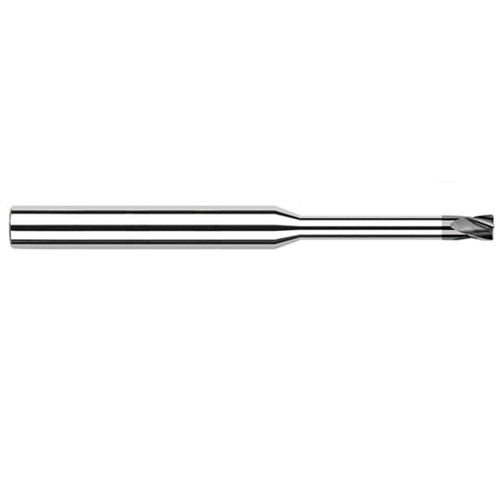

Product Specifications
Mill Diameter (Inch) | 1/32" |
Mill Diameter (Decimal Inch) | 0.0310" |
Corner Radius (Decimal Inch) | 0.0050" |
Number of Flutes | 4 |
Finish/Coating | CVD Diamond |
Length Of Cut (Inch) | 3/64" |
Length Of Cut (Decimal Inch) | 0.0470" |
Overall Reach (Inch) | 5/32" |
Overall Reach (Decimal Inch) | 0.1560" |
Overall Length (Inch) | 2-1/2" |
Overall Length (Decimal Inch) | 2.5000" |
Shank Diameter (Inch) | 1/8" |
Shank Diameter (Decimal Inch) | 0.1250" |
Single or Double End | Single |
Center Cutting (Yes/No) | Yes |
Neck Diameter (Decimal Inch) | 0.0295" |
LOC Multiple | 1.5x |
Reach Multiple | 5x |
Metric (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Mill Diameter (Inch):
1/32"
Mill Diameter (Decimal Inch):
0.0310"
Corner Radius (Decimal Inch):
0.0050"
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
CVD Diamond
Length of Cut (Inch):
3/64"
Length of Cut (Decimal Inch):
0.0470"
Shank Type:
Reduced
Overall Reach (Inch):
5/32"
Overall Reach (Decimal Inch):
0.1560"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Single or Double End:
Single
Application:
Diamond Tooling
Center Cutting:
Yes
Ships:
From Partner Facility
