Product Specifications

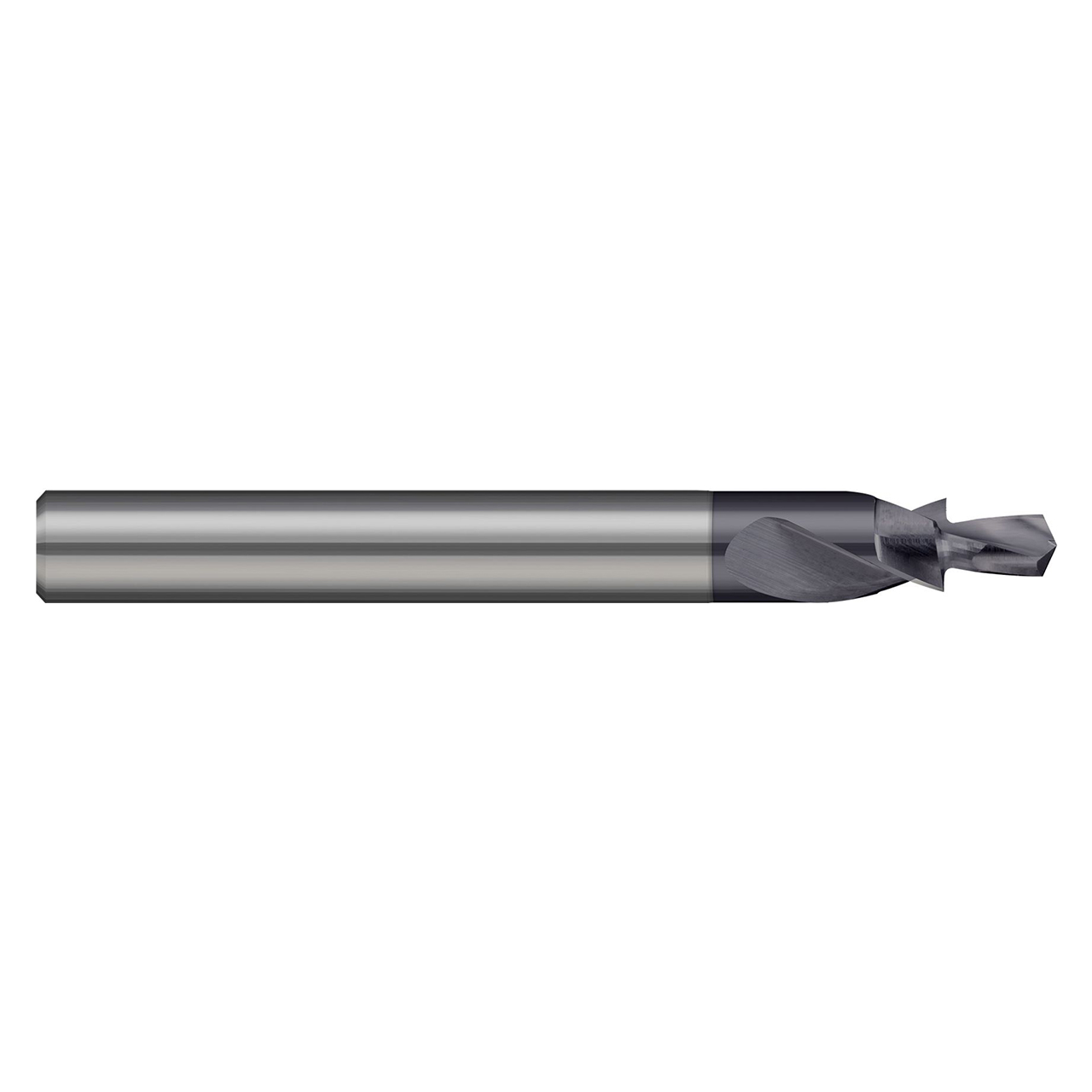

| Manufacturer Part Number | 700032-C3 |
| Cutter Diameter (Inch) | 13/16" |
| Cutter Diameter (Decimal Inch) | 0.813" |
| Drill Diameter (Inch) | 17/32" |
| Drill Diameter(Decimal Inch) | 0.531" |
| Flute Length (Decimal Inch) | 3.187" |
| Flute Length (Inch) | 3-3/16" |
| Overall Length (Inch) | 8" |
| Overall Length (Decimal Inch) | 8.000" |
| Point Angle (Degree) | 130 Degree |
| Number of Flute | 2 |
| Size | 1/2" |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (Decimal Inch) | 1.000" |
| Coating | C3 |
| Drill Length (Inch) | 2-21/32" |
| Drill Length (Decimal Inch) | 2.656" |
| Product Type | Combined Drill Counterbore |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutting Diameter (Inch):
13/16"
Cutting Diameter (Decimal Inch):
0.8130"
Cutting Diameter (mm):
20.65mm
Overall Length (Inch):
8"
Overall Length (Decimal Inch):
8.0000"
Overall Length (mm):
203.20mm
Finish/Coating:
C3
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Number of Flutes:
2
Point Angle (Degree):
130 Degree
interval quantity:
1
