Product Specifications
Manufacturer Part Number | 700105-C3 |
Cutter Diameter (Decimal Inch) | 0.249" |
Drill Diameter (Inch) | 9/64" |
Drill Diameter(Decimal Inch) | 0.141" |
Flute Length (Decimal Inch) | 0.352" |
Overall Length (Inch) | 2-1/2" |
Overall Length (Decimal Inch) | 2.500" |
Point Angle (Degree) | 130 Degree |
Number of Flute | 2 |
Size | 5" |
Shank Diameter (Inch) | 1/4" |
Shank Diameter (Decimal Inch) | 0.250" |
Coating | C3 |
Drill Length (Decimal Inch) | 0.211" |

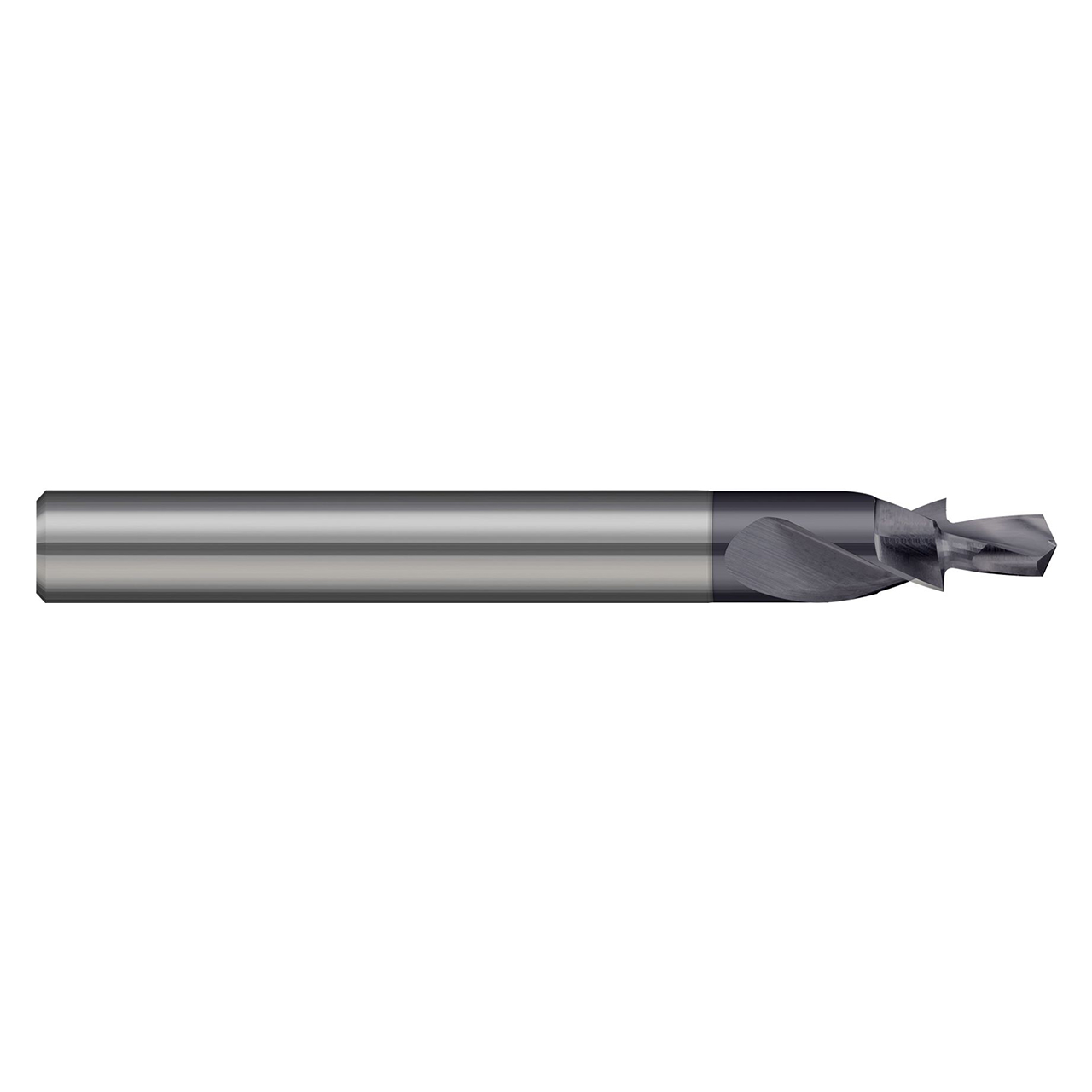

Product Type | Combined Drill Counterbore |

Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutting Diameter (Inch):
1/4"
Cutting Diameter (Decimal Inch):
0.2490"
Cutting Diameter (mm):
6.32mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Finish/Coating:
C3
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Number of Flutes:
2
Point Angle (Degree):
130 Degree
interval quantity:
1
