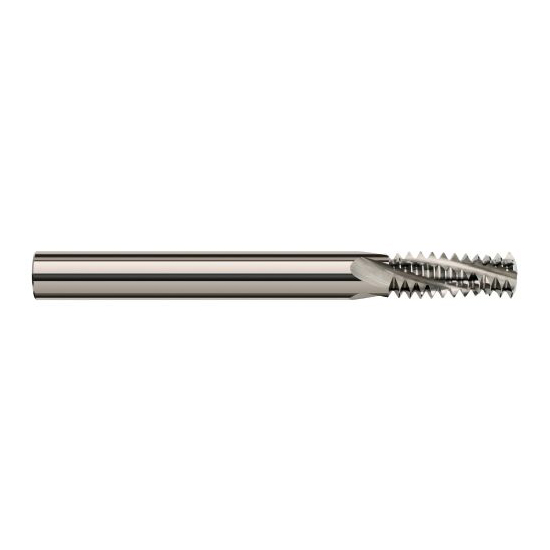

Harvey Tool 70046 | 1/4-28 Thread 0.1800" Cutting Diameter 3FL Uncoated Carbide Helical Flute Thread Mill

$139.60
Ships:
From Partner Facility
Brand:
Harvey Tool
Thread Size (Inch):
1/4-28
Cutter Diameter (Decimal Inch):
0.1800"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Number of Flutes:
3
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Finish/Coating:
Uncoated
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
SKU:
25120066
UPC:
Weight:
0.04 LBS
Shipping:
Free Shipping
Harvey Tool 70046 | 1/4-28 Thread 0.1800" Cutting Diameter 3FL Uncoated Carbide Helical Flute Thread Mill
Features
  • AlTiN coating works great in steels up to 60Rc
  • TiB2 coating is outstanding in aluminum
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Able to cut larger threads of the same pitch
  • Helical flutes
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Size 1/4-28
Milling Diameter (Decimal Inch) 0.1800"
Shank Diameter (Decimal Inch) 0.1875"
Shank Diameter (Inch) 3/16"
Number of Flutes 3
Length of Cut (Decimal Inch) 0.5000"
Length of Cut (Inch) 1/2"
Overall Length (Decimal Inch) 2.5000"
Overall Length (Inch) 2-1/2"
Finish/Coating Uncoated
Material Carbide
Coolant Through (Yes/No) No
Included Angle 60 Degree
Single or Double Single
