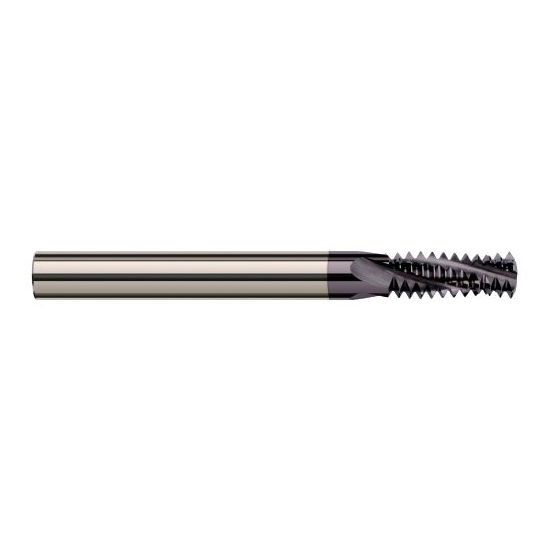

Harvey Tool 70084-C3 | 1/2-13 Thread 0.3500" Cutting Diameter 4FL AlTiN Coated Carbide Helical Flute Thread Mill

$237.30
Ships:
From Partner Facility
Brand:
Harvey Tool
Thread Size (Inch):
1/2-13
Cutter Diameter (Decimal Inch):
0.3500"
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Number of Flutes:
4
Length of Cut (Inch):
7/8"
Length of Cut (Decimal Inch):
0.8750"
Finish/Coating:
AlTiN
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
SKU:
25120071
UPC:
Weight:
0.17 LBS
Shipping:
Free Shipping
Harvey Tool 70084-C3 | 1/2-13 Thread 0.3500" Cutting Diameter 4FL AlTiN Coated Carbide Helical Flute Thread Mill
Features
  • AlTiN coating works great in steels up to 60Rc
  • TiB2 coating is outstanding in aluminum
  • Cuts internal and external 60 Degree UN threads
  • Mills right hand and left hand threads
  • Able to cut larger threads of the same pitch
  • Helical flutes
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Size 1/2-13
Milling Diameter (Decimal Inch) 0.3500"
Shank Diameter (Decimal Inch) 0.3750"
Shank Diameter (Inch) 3/8"
Number of Flutes 4
Length of Cut (Decimal Inch) 0.8750"
Length of Cut (Inch) 7/8"
Overall Length (Decimal Inch) 3.5000"
Overall Length (Inch) 3-1/2"
Finish/Coating AlTiN
Material Carbide
Coolant Through (Yes/No) No
Included Angle 60 Degree
Single or Double Single
