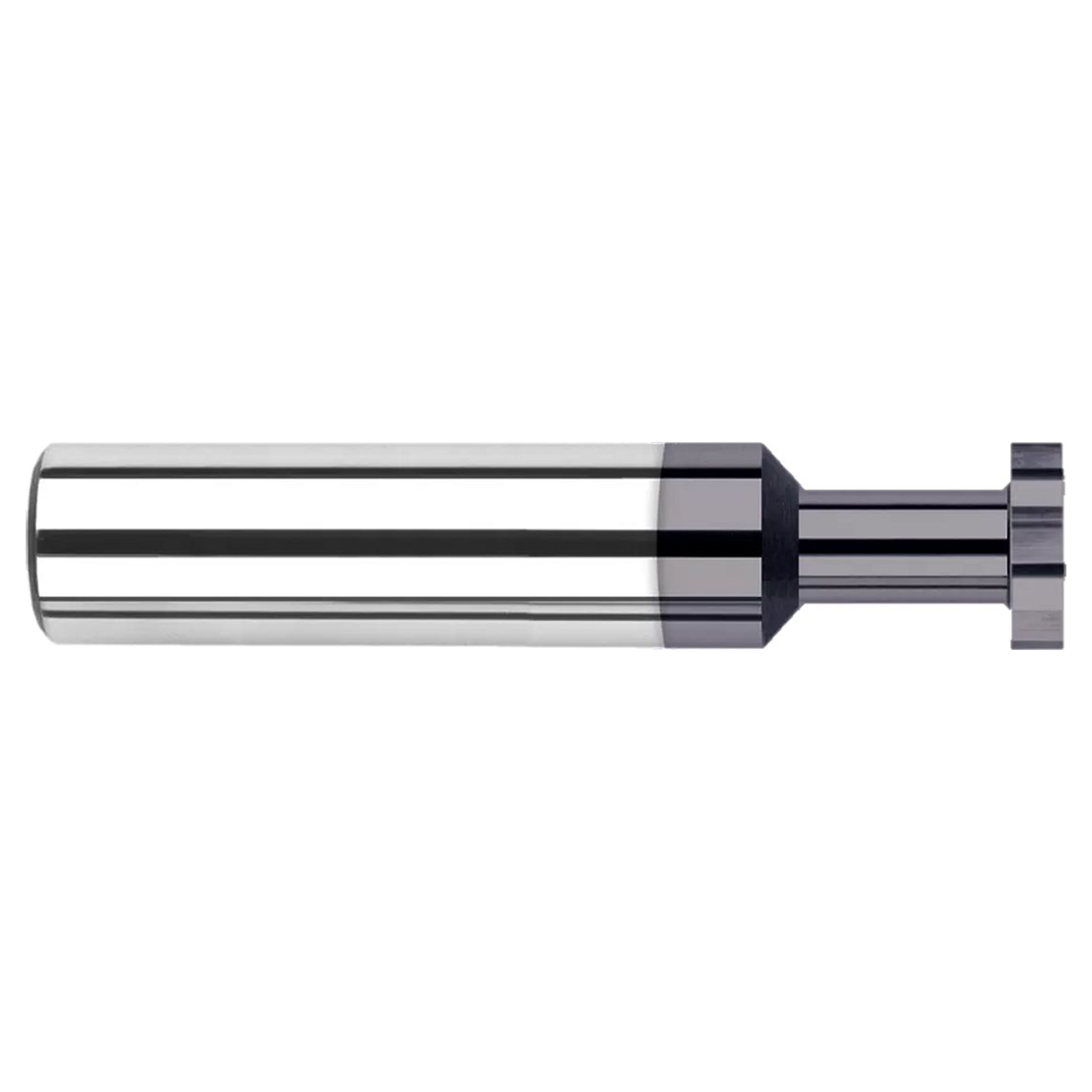

Harvey Tool has long offered the industry's best selection of Keyseat Cutters. Its line of square profile Keyseat Cutters are offered in three unique styles: Standard Slotting, Deep Slotting, or Max Slotting, allowing machinists to select the tool most appropriate for their application.
- Both sides of cutter are dished for clearance
- CNC ground in the USA
- Solid carbide
Product Specifications
| Tool Number | 70352-C3 |
| Cutter Diameter (Inch) | 0.3750" (3/8) |
| Neck Diameter (Inch) | 0.1870" (3/16) |
| Cutter Width (Inch) | 0.1000" |
| Neck Length (Inch) | 1.1250" (1-1/8) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Radial Depth of Cut (Inch) | 0.0840" |
| Flutes | 8 |
| Reach Multiple | 3x |
| Type | I |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Coating | C3 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
3/8"
Cutter Diameter (Decimal Inch):
0.3750"
Neck Diameter (Inch):
3/16"
Neck Diameter (Decimal Inch):
0.1870"
Number of Flutes:
8
Cutter Width (Decimal Inch):
0.1000"
Neck Length (Inch):
1-1/8"
Neck Length (Decimal Inch):
1.1250"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Finish/Coating:
C3
