Product Specifications
| Manufacturer Part Number | 713299-C3 |
| Cutter Diameter (Decimal Inch) | 1.375" |
| Cutter Diameter (Inch) | 1-3/8" |
| Cutter Width (Decimal Inch) | 0.250" |
| Cutter Width (Inch) | 1/4" |
| Overall Length (Decimal Inch) | 3.250" |
| Overall Length (Inch) | 3-1/4" |
| Radial Depth of Cut (Decimal Inch) | 0.427" |
| Number of Flute | 14 |
| Type | II |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Diameter (Inch) | 1/2" |
| Metric | No |
| Shank Length (Decimal Inch) | 3.000" |
| Shank Length (Inch) | 3" |
| Coating | C3 |

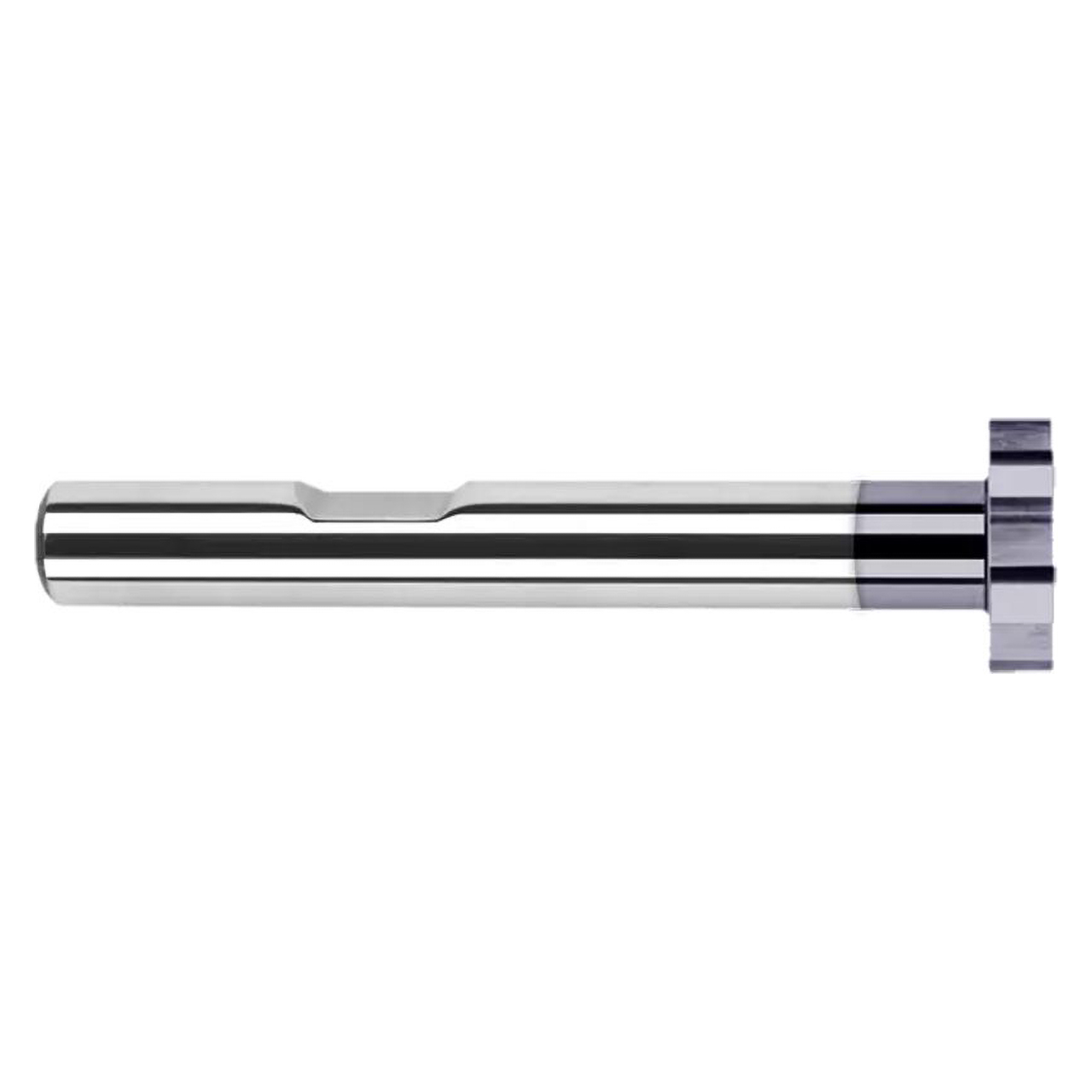

| Product Type | Keyseat Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutting Diameter (Inch):
1-3/8"
Cutting Diameter (Decimal Inch):
1.3750"
Cutting Diameter (mm):
34.93mm
Cutting Width (Inch):
1/4"
Cutting Width (Decimal Inch):
0.2500"
Cutting Width (mm):
6.35mm
Finish/Coating:
C3
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Overall Length (Inch):
3-1/4"
Overall Length (Decimal Inch):
3.2500"
Overall Length (mm):
82.55mm
Interval quantity:
1
