Product Specifications
| Manufacturer Part Number | 713924 |
| Length of Cut (Decimal Inch) | 0.153" |
| Overall Length (Decimal Inch) | 2.500" |
| Overall Length (Inch) | 2-1/2" |
| Tip Diameter (Decimal Inch) | 0.070" |
| Angle per Side (Degree) | 20 Degree |
| Included Angle (Degree) | 40 Degree |
| Number of Flute | 5 |
| Type | III |
| Shank Diameter (Decimal Inch) | 0.375" |
| Shank Diameter (Inch) | 3/8" |
| Metric | No |
| Coating | Uncoated |

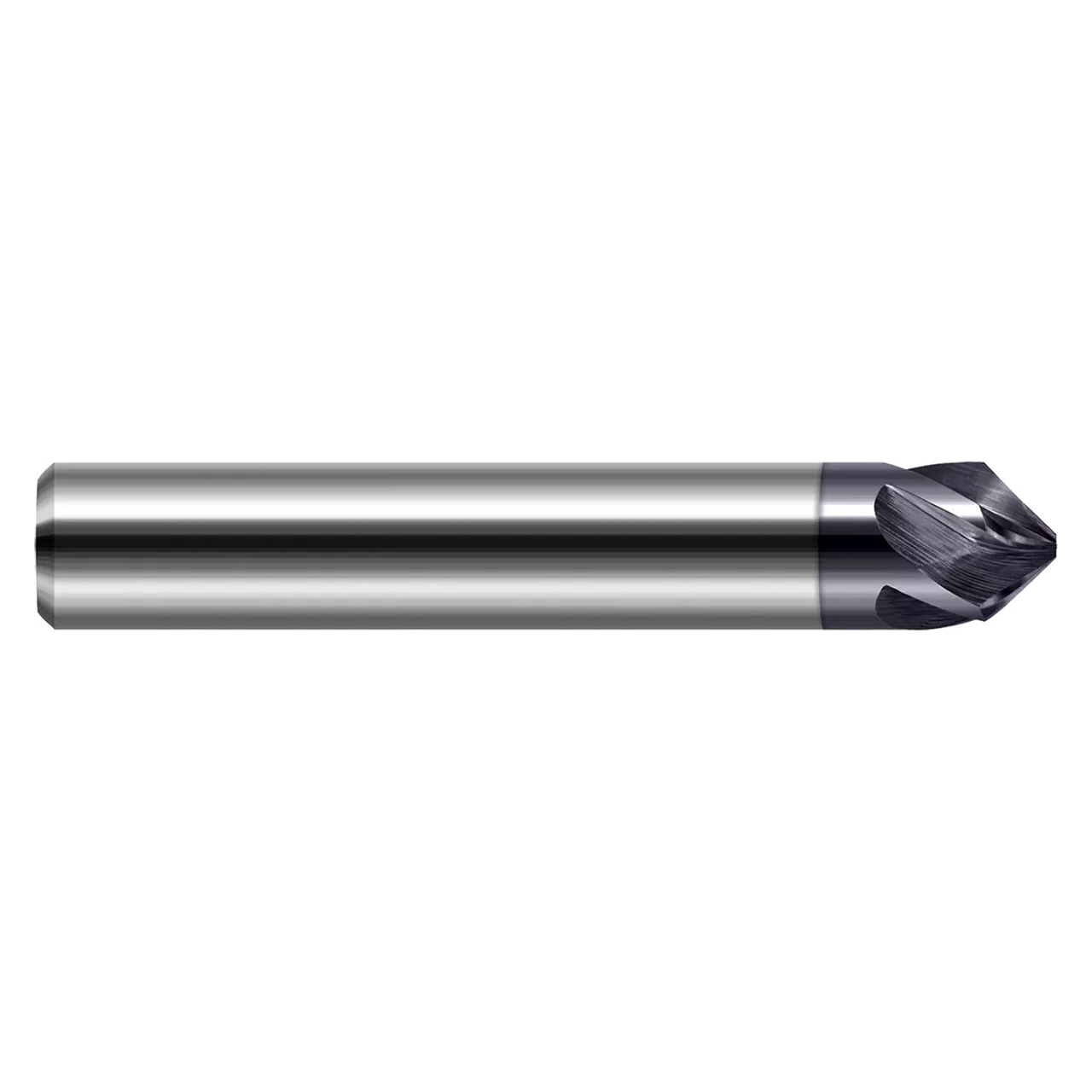

| Product Type | Chamfer Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Included Angle A:
40 Degree
Finish/Coating:
Uncoated
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Number of Flutes:
5
Interval quantity:
1
