Product Specifications
Manufacturer Part Number | 715116 |
Cutter Diameter (Decimal Inch) | 0.250" |
Cutter Diameter (Inch) | 1/4" |
Length of Cut (Decimal Inch) | 0.750" |
Length of Cut (Inch) | 3/4" |
Overall Length (Decimal Inch) | 2.500" |
Overall Length (Inch) | 2-1/2" |
Number of Flute | 5 |
LOC Multiple | (3x) |
Shank Diameter (Decimal Inch) | 0.250" |
Shank Diameter (Inch) | 1/4" |
Metric | No |
Coating | Uncoated |

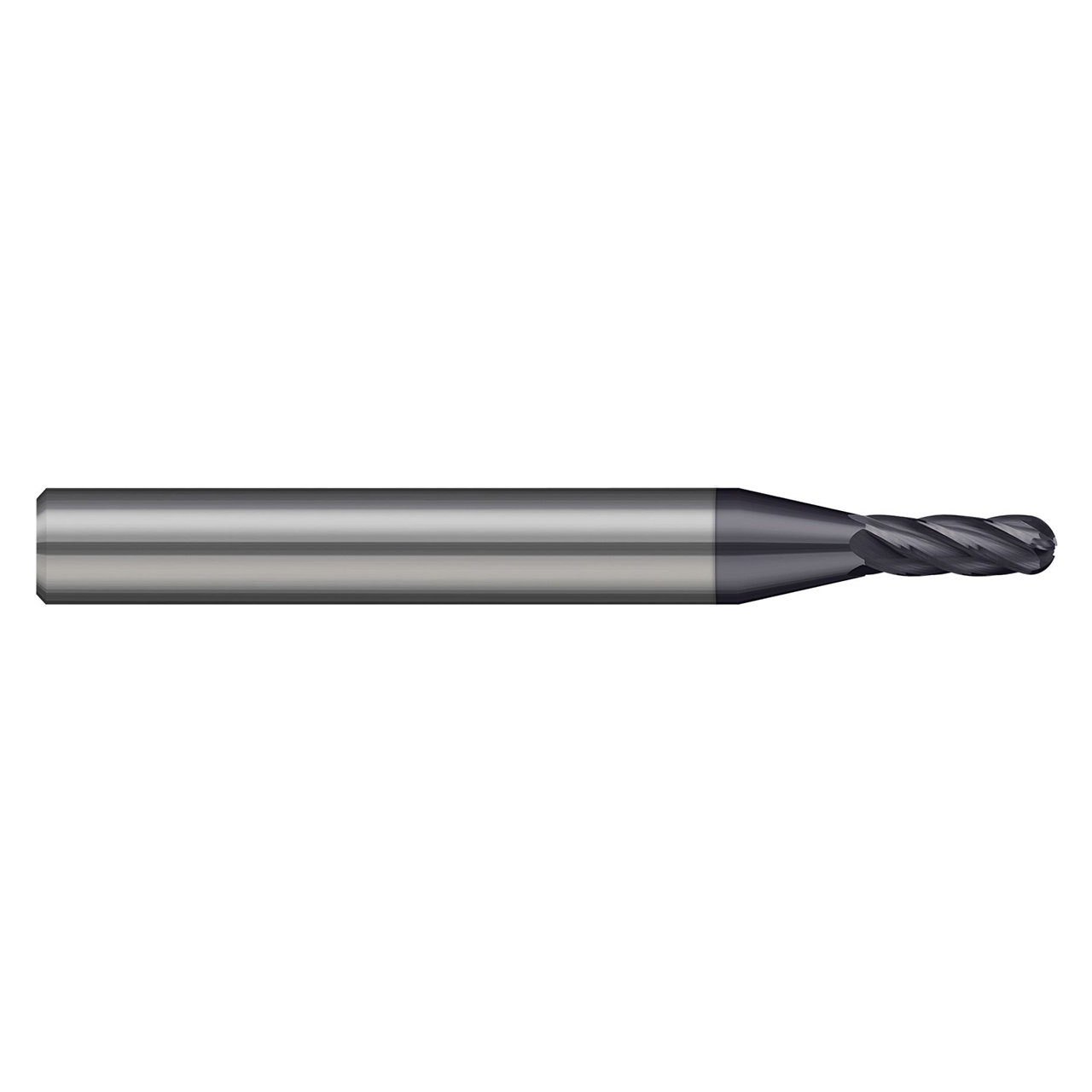

Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Number of Flutes:
5
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
Uncoated
Interval quantity:
1
