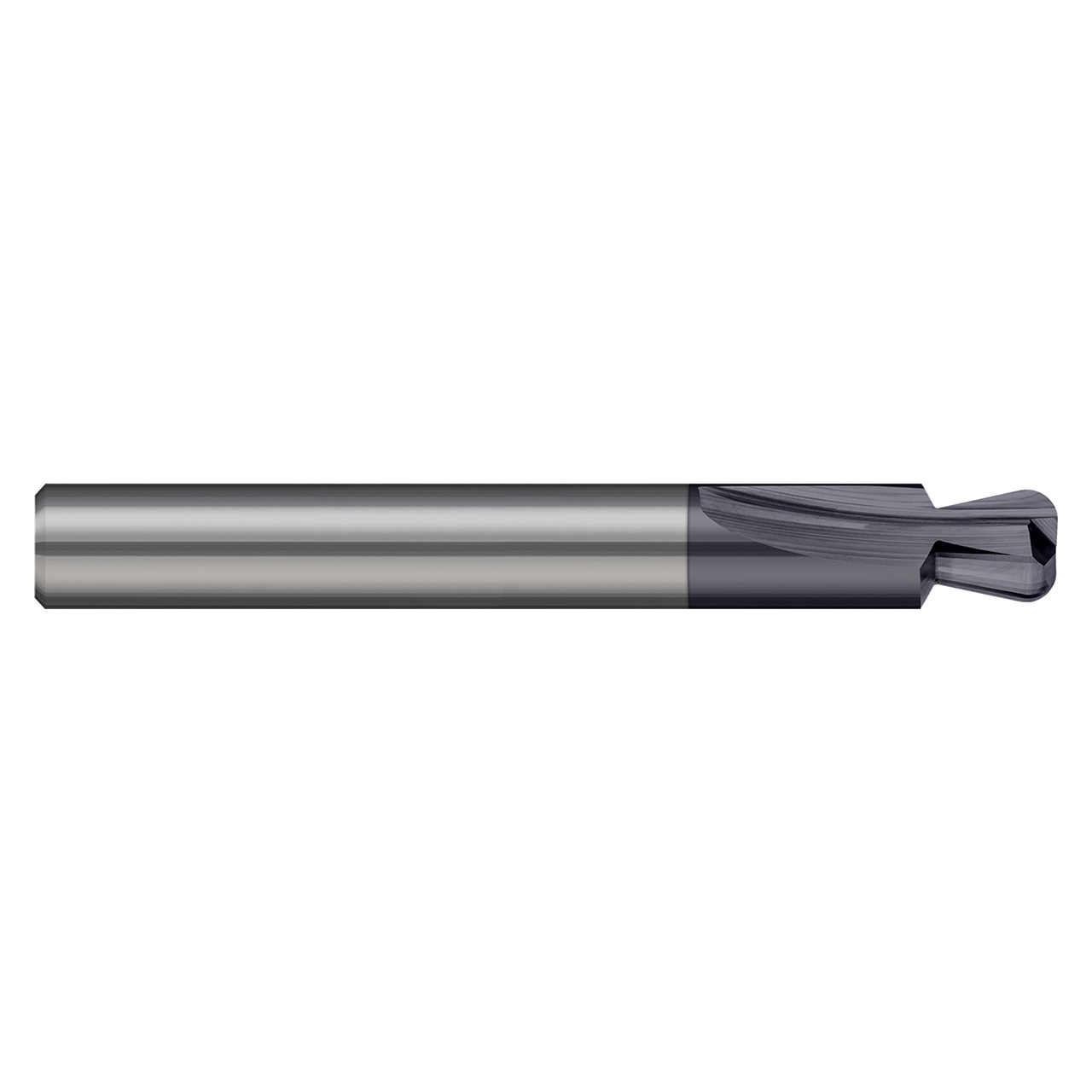

Harvey Tool 715214-C8 | 0.083" Diameter x 1/8" Shank x 1/64" Corner Radius x 1-1/2" OAL 2 Degree Included Angle 2 Flute C8 Coated Dovetail Cutter

$87.00
Brand:
Harvey Tool
Included Angle:
2 Degree
Cutting Diameter (Inch):
5/64"
Cutting Diameter (Decimal Inch):
0.0830"
Cutting Diameter (mm):
2.11mm
Finish/Coating:
C8
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.10mm
Interval quantity:
1
SKU:
25352263
Weight:
0.01 LBS
Shipping:
Free Shipping
Harvey Tool 715214-C8 | 0.083" Diameter x 1/8" Shank x 1/64" Corner Radius x 1-1/2" OAL 2 Degree Included Angle 2 Flute C8 Coated Dovetail Cutter

Product Specifications
Manufacturer Part Number715214-C8
Cutter Diameter (Decimal Inch)0.083"
Cutter Diameter (mm)2.10mm
Neck Diameter (Decimal Inch)0.054"
Length of Cut (Decimal Inch)0.085"
Overall Length (Decimal Inch)1.500"
Overall Length (Inch)1-1/2"
Corner Radius (Decimal Inch)0.015"
Corner Radius (Inch)1/64"
Angle per Side (Degree)12 Degree
Included Angle (Degree)2 Degree
Number of Flute2
O Ring X Section (Decimal Inch)0.103"
Shank Diameter (Decimal Inch)0.125"
Shank Diameter (Inch)1/8"
MetricNo
CoatingC8
Product TypeSpecialty Dovetail Cutter
